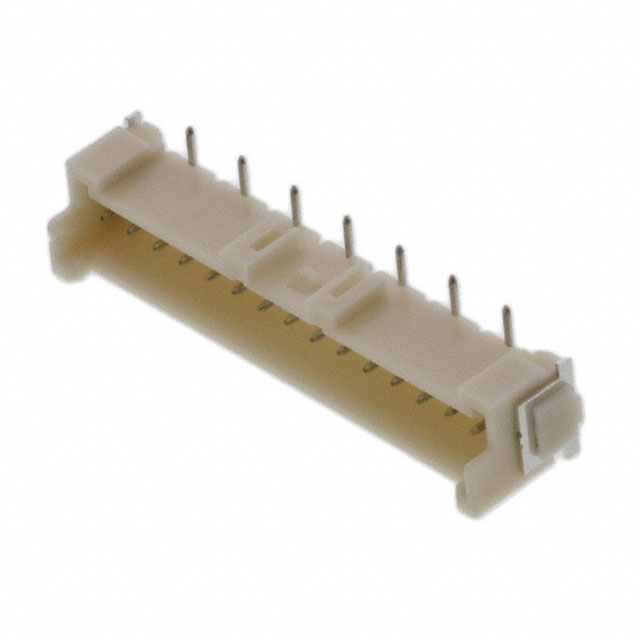

BM15B-XASS-TF

Active

JST Sales America Inc.

CONN HEADER SMD 15POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 15POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM15B-XASS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.37 in
Insulation Height	9.4 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	11.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Contact Material	Contact Shape	Fastening Type	Shrouding	Number of Positions	Voltage Rating	Features	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Material Flammability Rating	Contact Type	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Mounting Type	Insulation Material	Contact Finish - Post	Number of Rows
JST Sales America Inc. BM15B-XASS-TF	Solder	Copper Alloy	Circular	Locking Ramp	Shrouded - 4 Wall	15	250 VDC	Solder Retention	Header	-25 °C	85 °C	3 A	0.37 in	9.4 mm	Natural	UL94 V-0	Male Pin	Board to Cable/Wire	All	2.5 mm	0.098 in	11.9 mm	Surface Mount	Nylon Polyamide (PA)	Tin	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 15 position 0.098" (2.50mm)
