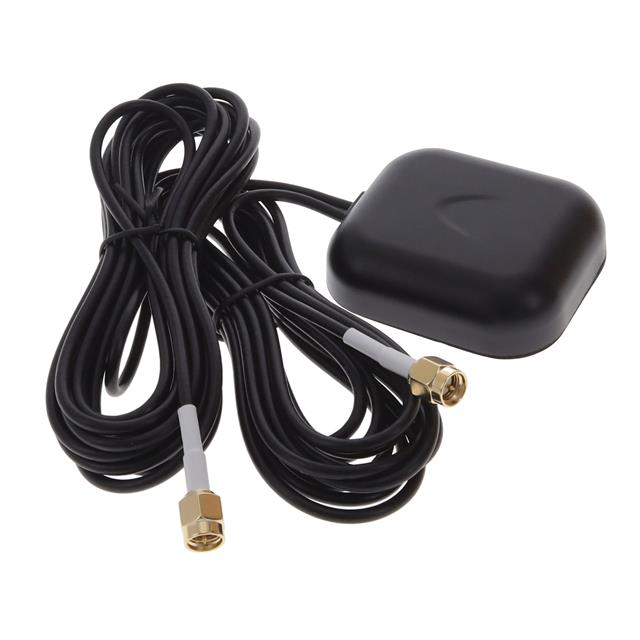

RPA-MBF5-A-5550-1M-GE-001

Active

Raltron Electronics

SMALL MAGNETIC MOUNT GPS/GLONASS

Search across all available documentation for this part.

Active

Raltron Electronics

SMALL MAGNETIC MOUNT GPS/GLONASS

Technical Specifications

Parameters and characteristics for this part

SMALL MAGNETIC MOUNT GPS/GLONASS

Part	RF Family/Standard	Frequency Group	Height (Max) [Max]	Height (Max) [Max]	Termination	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	Gain	Number of Bands	Mounting Type	Frequency (Center/Band)	Applications	Features	Features	VSWR
Raltron Electronics RPA-MBF5-A-5550-1M-GE-001	Cellular, Navigation	Wide Band	17 mm	0.669 in	SMA	Module	1.572 GHz	1.578 GHz	4.5 dBi, 5 dBi	1	Magnetic	1.575 GHz, 1.94 GHz, 892 MHz	4G, Cellular, GPS	Cable	2.5 m	1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

892MHz, 1.575GHz, 1.94GHz 4G, Cellular, GPS Module RF Antenna 1.572GHz ~ 1.578GHz 4.5dBi, 5dBi SMA Magnetic
