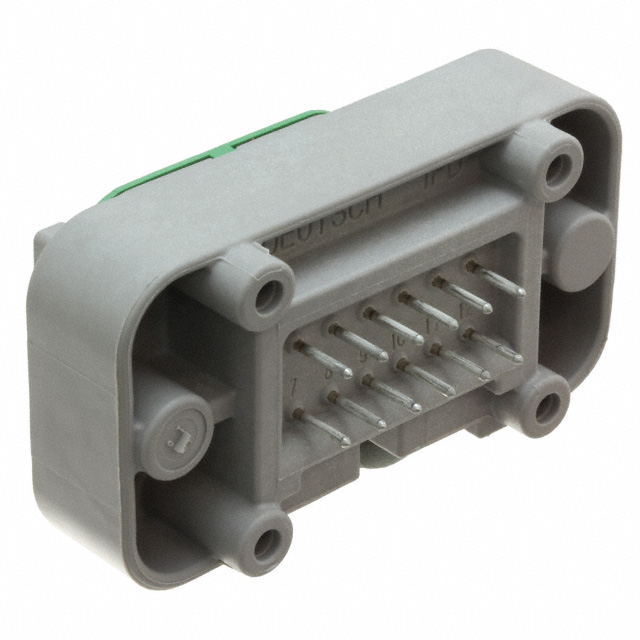

DTM15-12PC
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER VERT 12POS 4.2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM15-12PC |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Mounting Flange |
| Ingress Protection | IP6K9K, IP68 |
| Insulation Color | Gray |
| Insulation Material | Plastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Row Spacing - Mating | 0.28 in |
| Row Spacing - Mating | 7.1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.69 | |
| 10 | $ 14.47 | |||
| 25 | $ 13.71 | |||
| 50 | $ 13.51 | |||
| 100 | $ 11.92 | |||
| 250 | $ 11.13 | |||
| 500 | $ 10.89 | |||
Description
General part information
DTM15 Series
Connector Header Panel Mount, Through Hole 12 position 0.165" (4.20mm)
