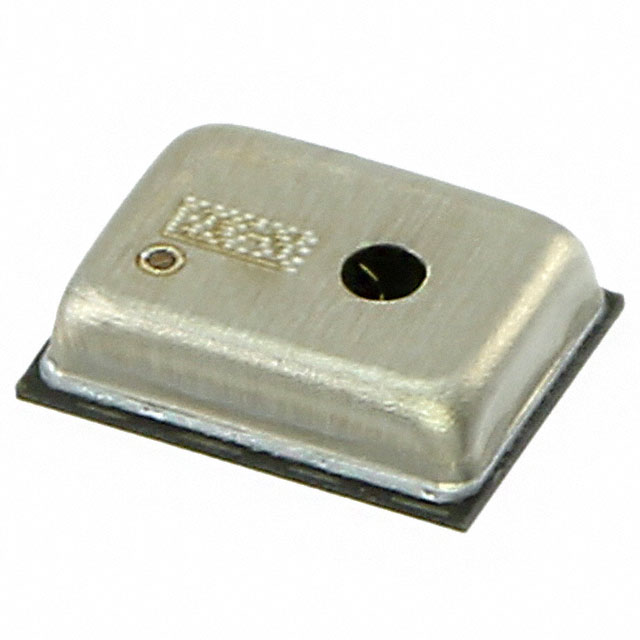

MP34DT01TR-M

Obsolete

STMicroelectronics

MIC MEMS DIGITAL PDM OMNI -26DB

Search across all available documentation for this part.

Obsolete

STMicroelectronics

MIC MEMS DIGITAL PDM OMNI -26DB

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max]	Height (Max) [Max]	Sensitivity	Voltage Range [Min]	Voltage Range [Max]	Output Type	Port Location	Direction	Type	Frequency Range [Max]	Frequency Range [Min]	Voltage - Rated	Current - Supply	Termination	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	S/N Ratio	Shape	Size / Dimension [y]	Size / Dimension [x]
STMicroelectronics MP34DT04TR-C1	2 mm	0.079 in	-26 dB	1.6 V	3.6 V	Digital PDM	Top	Omnidirectional	MEMS (Silicon)	10 kHz	100 Hz	1.8 V	10 mA	Surface Mount	4 mm	0.157 "	0.118 "	3 mm	64 dB	Rectangular
STMicroelectronics MP34DT01TR-M	1.16 mm	0.046 in	-26 dB	1.64 V	3.6 V	Digital PDM	Top	Omnidirectional	MEMS (Silicon)	10 kHz	20 Hz	1.8 V	600 µA	Solder Pads		3 mm	4 mm		61 dB	Rectangular	0.118 in	0.157 "
STMicroelectronics MP34DB02TR	1.1 mm	0.043 in	-26 dB	1.64 V	3.6 V	Digital PDM	Bottom	Omnidirectional	MEMS (Silicon)	20 kHz	20 Hz	1.8 V	650 µA	Solder Pads		3 mm	4 mm		62.6 dB	Rectangular	0.118 in	0.157 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) 1.64 V ~ 3.6 V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads

Technical documentation and resources
