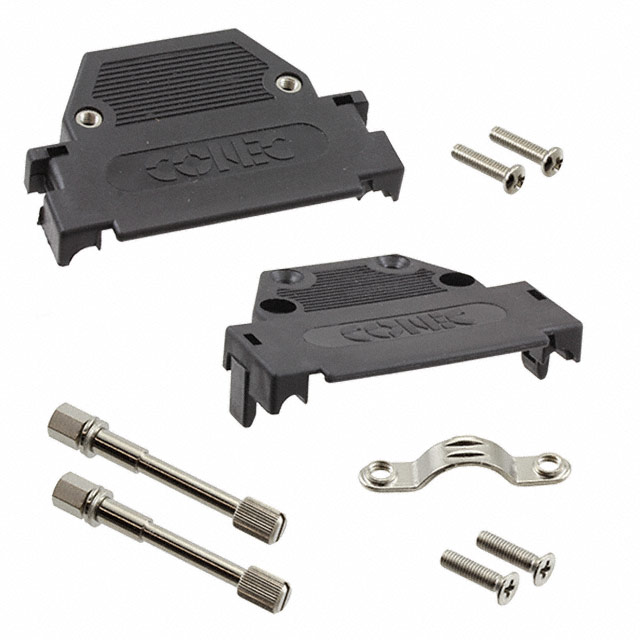

165X10259X

Active

Amphenol CONEC

CONN BACKSHELL 25POS 180DEG BLK

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN BACKSHELL 25POS 180DEG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	165X10259X

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD44pos, 25pos
Compatible Shell Size	B
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Polybutylene Terephthalate (PBT), Glass Filled
Primary Material	Plastic
Shielding	Unshielded

Part	Material	Compatible D-Sub Size	Number of Positions	Shielding	Cable Exit	Accessory Type	Cable Type	Features	Hardware	Compatible Shell Size	Primary Material	Color	Plating
Amphenol CONEC 165X10219X	Polybutylene Terephthalate (PBT) Glass Filled	37pos HD62pos	37	Unshielded	180 °	Two Piece Backshell	Round	Mating Screws M3	Assembly Hardware Strain Relief	C	Plastic	Black
Amphenol CONEC 165X10259X	Polybutylene Terephthalate (PBT) Glass Filled	25pos HD44pos		Unshielded	180 °	Two Piece Backshell	Round	Mating Screws 4-40	Assembly Hardware Strain Relief	B	Plastic	Black
Amphenol CONEC 165X10209X	Polybutylene Terephthalate (PBT) Glass Filled	25pos HD44pos		Unshielded	180 °	Two Piece Backshell	Round	Mating Screws M3	Assembly Hardware Strain Relief	B	Plastic	Black	Nickel
Amphenol CONEC 165X10249X	Glass Filled Nylon Polyamide (PA)	15pos HD26pos	15	Unshielded	180 °	Two Piece Backshell	Round	IP20 Mating Screws 4-40	Assembly Hardware Strain Relief	A	Plastic	Black
Amphenol CONEC 165X10229X	Glass Filled Nylon Polyamide (PA)	50pos HD78pos	50	Unshielded	180 °	Two Piece Backshell	Round	Mating Screws	Assembly Hardware Strain Relief	D	Plastic
Amphenol CONEC 165X10209XE	Polybutylene Terephthalate (PBT) Glass Filled	25pos HD44pos		Unshielded	180 °	Two Piece Backshell	Round	Mating Screws M3	Assembly Hardware Strain Relief	B	Plastic	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position Two Piece Backshell Connector Black 180° Unshielded
