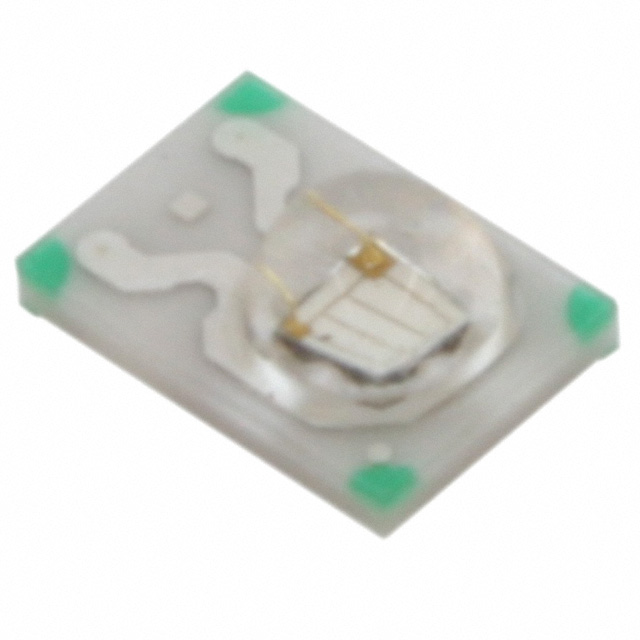

ELSH-E71B1-0CPNM-CB7B8

Active

Everlight Electronics Co Ltd

LED SHUEN BLUE 465NM SMD

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED SHUEN BLUE 465NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ELSH-E71B1-0CPNM-CB7B8

Color	Blue
Current - Max [Max]	600 mA
Current - Test	350 mA
Lumens/Watt @ Current - Test	15 lm/W
Luminous Flux @ Current/Temperature	19 lm
Mounting Type	Surface Mount
Package / Case	3246 Metric, 1218
Size / Dimension [x]	3.05 mm
Size / Dimension [x]	0.12 in
Size / Dimension [y]	0.177 "
Size / Dimension [y]	4.5 mm
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	10 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.25 V
Wavelength	465 nm
Wavelength [Max]	470 nm
Wavelength [Min]	460 nm

Part	Package / Case	Viewing Angle	Voltage - Forward (Vf) (Typ)	Thermal Resistance of Package [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Color	Supplier Device Package	Mounting Type	Luminous Flux @ Current/Temperature	Current - Test	Current - Max [Max]	Wavelength [Min]	Wavelength [Max]	Wavelength
Everlight Electronics Co Ltd ELSH-E71B1-0CPNM-CB7B8	1218 3246 Metric	120 °	3.25 V	10 °C/W	3.05 mm	0.12 in	0.177 "	4.5 mm	15 lm/W	Blue	SMD	Surface Mount	19 lm	350 mA	600 mA	460 nm	470 nm	465 nm
Everlight Electronics Co Ltd ELSH-E71B1-0LPNM-CB7B8	1218 3246 Metric	120 °	3.25 V	10 °C/W	3.05 mm	0.12 in	0.177 "	4.5 mm	15 lm/W	Blue	SMD	Surface Mount	19 lm	350 mA	600 mA	460 nm	470 nm	465 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color SHUEN Blue 465nm (460nm ~ 470nm) 1218 (3246 Metric)

Technical documentation and resources

No documents available
