Specification	RT0W6106PNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	Gasket, Connector, O-Ring
Includes Total Count	3 pcs
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	6 mm
Shielding	Shielded
Type	For Male Pins

RT0W6106 Series

Part	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Orientation	Contact Size	Connector Type	Type	Contact Shape	Shell Finish	Shell Material	Shell Size - Insert Length	Shell Size - Insert Width	Material Flammability Rating	Housing Color	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Note	Includes	Includes Total Count	Shielding	Number of Positions	Fastening Type	Features	Primary Material	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Color	Voltage Rating	Voltage Rating (Type)	Current Rating
McGill Microwave Systems RT0W6106PNH03	Free Hanging (In-Line)	125 °C	-40 °C	Crimp	N (Normal)	20	Plug Housing	For Male Pins	Circular	Nickel	Zinc Alloy	10 mm	6 mm	UL94 V-0	Silver	Thermoplastic	Dust Tight Waterproof	IP67	Contacts Not Included	Connector Gasket O-Ring	3 pcs	Shielded	6	Bayonet Lock	Coupling Nut
McGill Microwave Systems RT0W6106SNHEC03	Free Hanging (In-Line)			Crimp	N (Normal)	20	Plug Housing	For Female Sockets		Nickel	Zinc Alloy	10 mm	6 mm	UL94 V-0	Silver		Dust Tight Waterproof	IP67				Shielded	6	Bayonet Lock	Backshell Coupling Nut	Metal
McGill Microwave Systems RT0W6106PNHEC03	Free Hanging (In-Line)			Crimp	N (Normal)	20	Plug Housing	For Male Pins		Nickel	Zinc Alloy	10 mm	6 mm	UL94 V-0	Silver		Dust Tight Waterproof	IP67				Shielded	6	Bayonet Lock	Backshell Coupling Nut	Metal

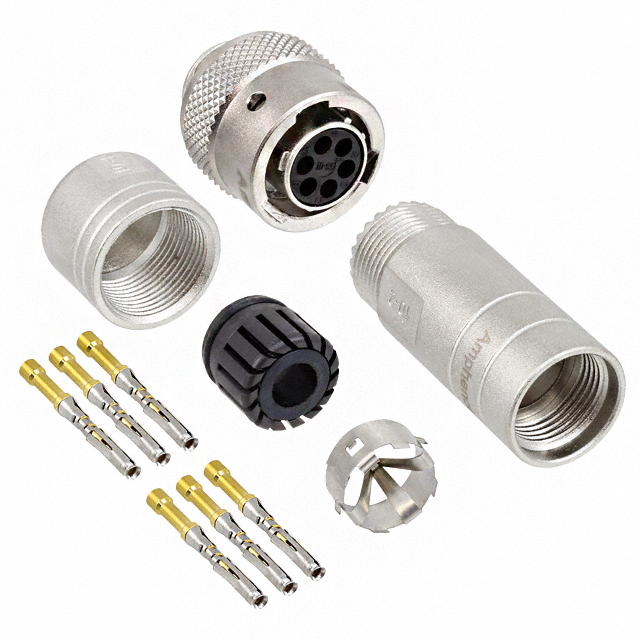

McGill Microwave Systems RT0W6106SNH-K	Free Hanging (In-Line)	105 °C	-40 °C		N (Normal)		Female Sockets Plug			Nickel	Zinc Die Cast	10 mm	6 mm				Dust Tight Waterproof	IP67					6	Bayonet Lock		Metal	Flash	Crimp	Gold	Silver	150 VDC	DC	7.5 A

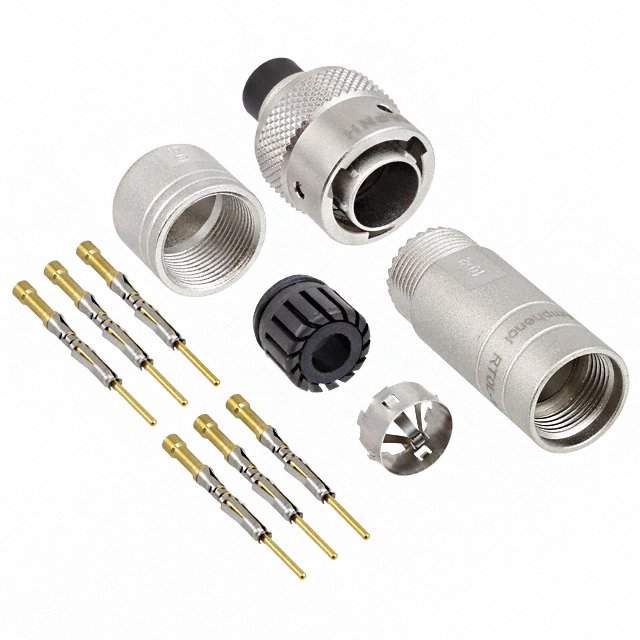

McGill Microwave Systems RT0W6106PNH-K	Free Hanging (In-Line)	105 °C	-40 °C		N (Normal)		Male Pins Plug			Nickel	Zinc Die Cast	10 mm	6 mm				Dust Tight Waterproof	IP67					6	Bayonet Lock		Metal	Flash	Crimp	Gold	Silver	150 VDC	DC	7.5 A
McGill Microwave Systems RT0W6106PNHEC	Free Hanging (In-Line)	105 °C	-40 °C	Crimp	N (Normal)	20	Plug Housing	For Male Pins	Circular	Nickel	Zinc Alloy	10 mm	6 mm	UL94 V-0	Silver	Thermoplastic	Dust Tight Waterproof	IP67	Contacts Not Included			Shielded	6	Bayonet Lock	Backshell Coupling Nut

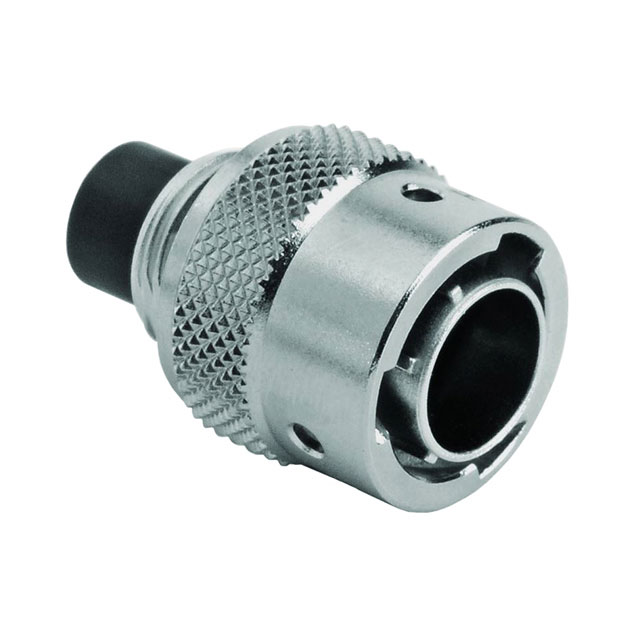

McGill Microwave Systems RT0W6106PNH	Free Hanging (In-Line)	105 °C	-40 °C	Crimp	N (Normal)	20	Plug Housing	For Male Pins	Circular	Nickel	Zinc Alloy	10 mm	6 mm	UL94 V-0	Silver	Thermoplastic	Dust Tight Waterproof	IP67	Contacts Not Included			Shielded	6	Bayonet Lock	Coupling Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

RT0W6106PNH03 | Datasheet
