Specification	1747052-5

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Green
Insulation Height	0.571 in
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch - Mating	0.312 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder
Voltage Rating	300 VAC/DC

GRACE INERTIA 7.92 Series

Part	Contact Finish - Mating	Connector Type	Material Flammability Rating	Mounting Type	Contact Shape	Number of Positions Loaded	Current Rating	Current Rating	Features	Shrouding	Termination	Contact Type	Voltage Rating	Fastening Type	Insulation Material	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Insulation Color	Pitch - Mating	Contact Material	Contact Finish - Post	Number of Positions	Style	Applications	Note	Contact Termination	Pitch	Color

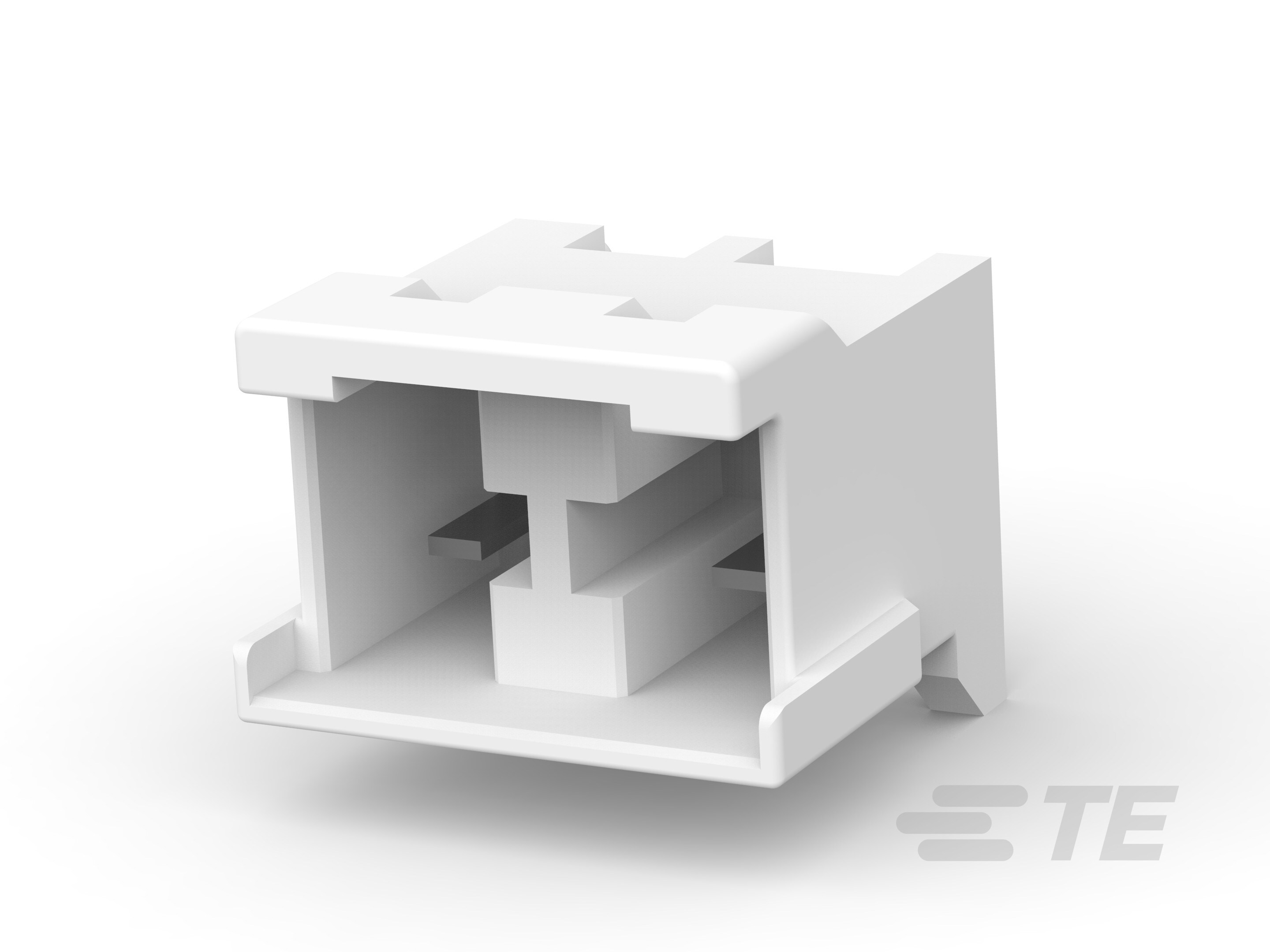

TE Connectivity AMP Connectors 1747052-1	Tin	Header	UL94 V-0	Through Hole	Rectangular	All	0 A	Varies by Wire Gauge	Board Guide	Shrouded - 4 Wall	Press-Fit Solder	Tab	300 VAC/DC	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-30 °C	105 °C	0.571 in	Natural	0.312 in	Copper Alloy	Tin	2	Board Cable/Wire
TE Connectivity AMP Connectors 2-1747052-4	Tin	Header	UL94 V-0	Through Hole	Rectangular	All	0 A	Varies by Wire Gauge	Board Guide	Shrouded - 4 Wall	Press-Fit Solder	Tab	300 VAC/DC	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-30 °C	105 °C	0.571 in	Yellow	0.312 in	Copper Alloy	Tin	2	Board Cable/Wire
TE Connectivity AMP Connectors 1747052-4	Tin	Header	UL94 V-0	Through Hole	Rectangular	All	0 A	Varies by Wire Gauge	Board Guide	Shrouded - 4 Wall	Press-Fit Solder	Tab	300 VAC/DC	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-30 °C	105 °C	0.571 in	Yellow	0.312 in	Copper Alloy	Tin	2	Board Cable/Wire	General Purpose Industrial
TE Connectivity AMP Connectors 2-1747052-5	Tin	Header	UL94 V-0	Through Hole	Rectangular	All	0 A	Varies by Wire Gauge	Board Guide	Shrouded - 4 Wall	Press-Fit Solder	Tab	300 VAC/DC	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-30 °C	105 °C	0.571 in	Green	0.312 in	Copper Alloy	Tin	2	Board Cable/Wire	General Purpose Industrial
TE Connectivity AMP Connectors 1-1747050-2		Plug		Free Hanging (In-Line)								Tab		Latch Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-40 °C	105 °C						2			Contacts Not Included	Crimp	0.307 in	Red

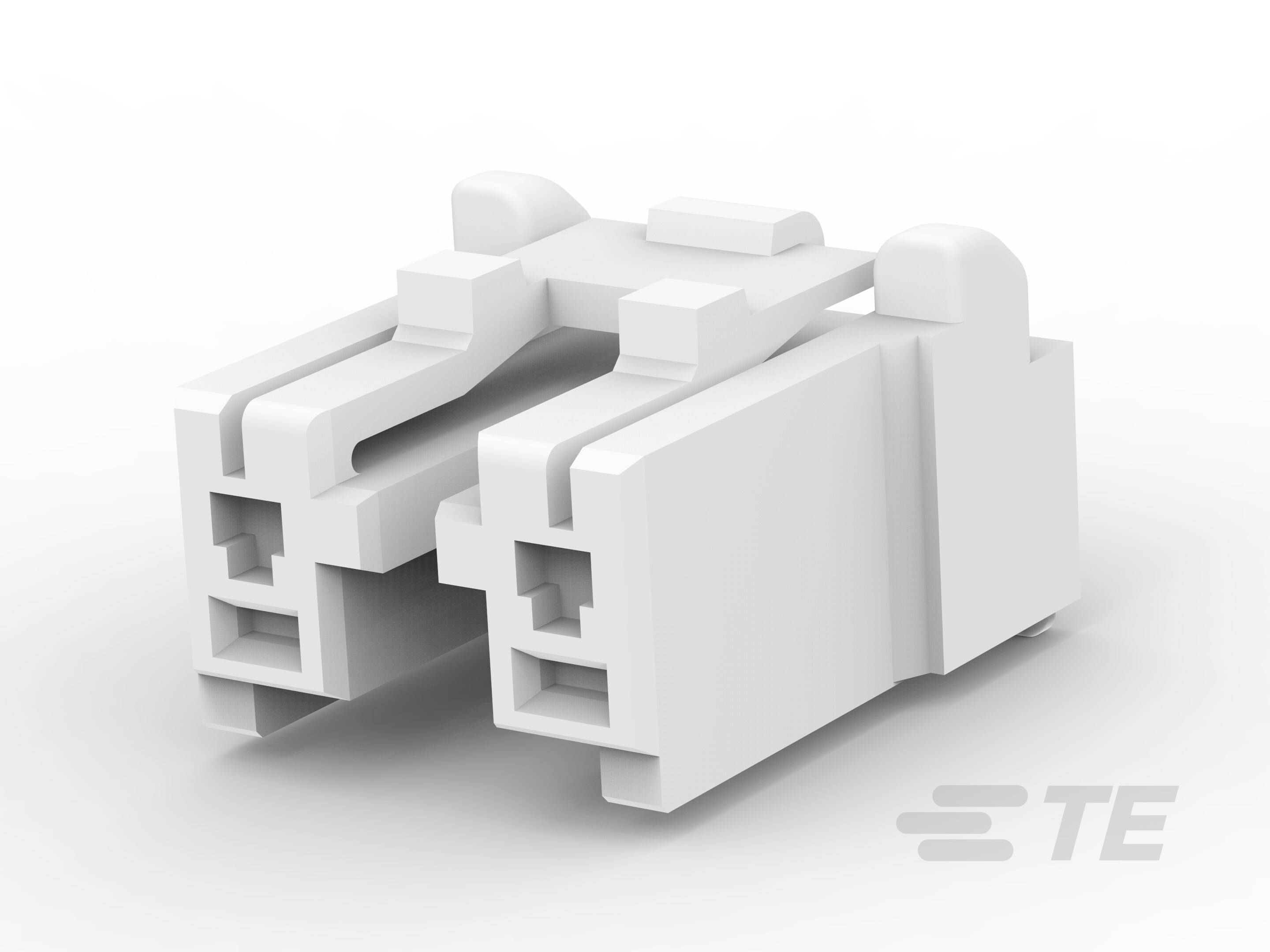

TE Connectivity AMP Connectors 2-1747050-1		Plug		Free Hanging (In-Line)								Tab		Latch Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-40 °C	105 °C						2				Crimp	0.307 in	Natural
TE Connectivity AMP Connectors 2-1747050-3		Plug		Free Hanging (In-Line)								Tab		Latch Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-40 °C	105 °C						2				Crimp	0.307 in	Blue

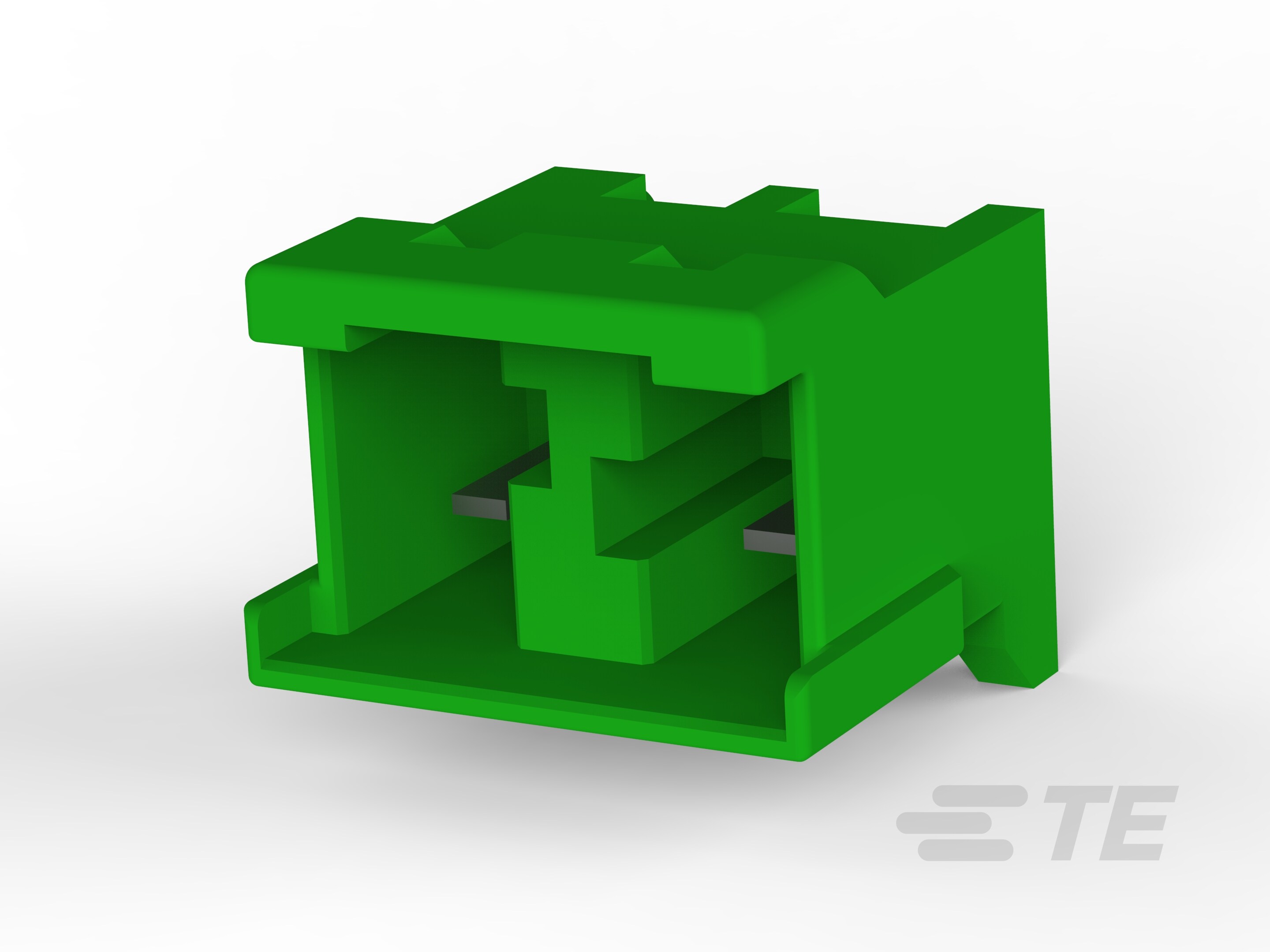

TE Connectivity AMP Connectors 1-1747052-5	Tin	Header	UL94 V-0	Through Hole	Rectangular	All	0 A	Varies by Wire Gauge	Board Guide	Shrouded - 4 Wall	Press-Fit Solder	Tab	300 VAC/DC	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-30 °C	105 °C	0.571 in	Green	0.312 in	Copper Alloy	Tin	2	Board Cable/Wire	General Purpose Industrial
TE Connectivity AMP Connectors 3-1747050-4		Plug		Free Hanging (In-Line)								Tab		Latch Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-40 °C	105 °C						2				Crimp	0.307 in	Yellow

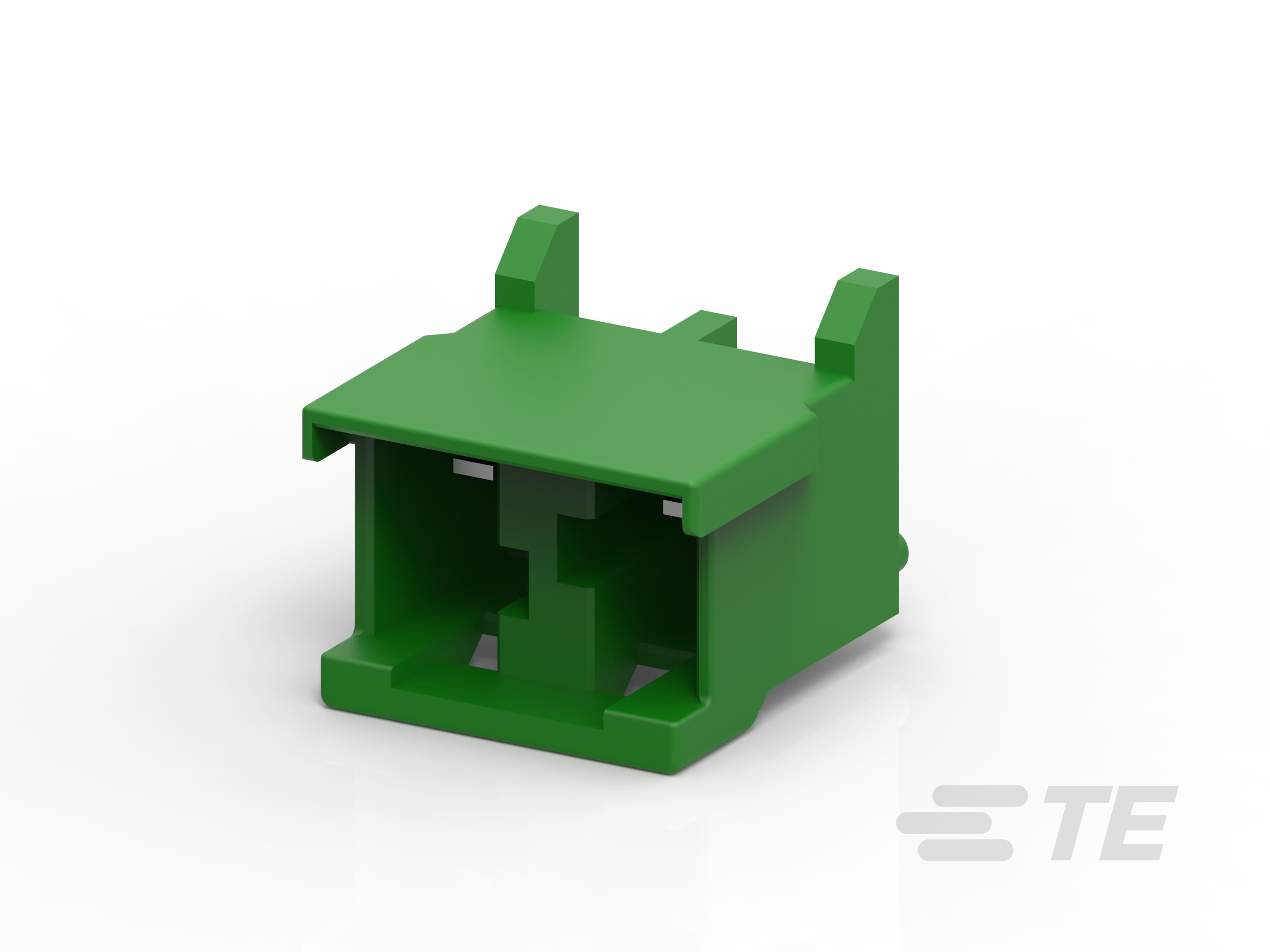

TE Connectivity AMP Connectors 3-1747052-5	Tin	Header	UL94 V-0	Through Hole	Rectangular	All	10 A		Board Guide	Shrouded - 4 Wall	Press-Fit Solder	Tab	300 VAC/DC	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	1	-40 °C	105 °C	0.571 in	Green	0.312 in	Copper Alloy	Tin	2	Board Cable/Wire
