AUTOMOTIVE CONNECTOR, BLACK, BOARDLOCK ATP SERIES, STRAIGHT RECEPTACLE, 2 CONTACTS, SOLDER PIN

ATP04-2P-BM03

Active

McGill Microwave Systems

AUTOMOTIVE CONNECTOR, BLACK, BOARDLOCK ATP SERIES, STRAIGHT RECEPTACLE, 2 CONTACTS, SOLDER PIN

Description Specifications Series Pricing CAD Documents

Description

General part information

ATP04-2P Series

Connector Header Through Hole 2 position 0.264" (6.70mm)

Technical Specifications

Parameters and characteristics for this part

Specification	ATP04-2P-BM03

Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.146 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	25 A
Fastening Type	Latch Holder
Features	Sealed, Board Lock, Board Guide
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insulation Color	Black
Insulation Height	1.126 in
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.264 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

ATP04-2P Series

Part	Mounting Type	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Insulation Material	Features	Contact Type	Contact Termination	Color	Fastening Type	Number of Rows	Contact Finish - Post	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish - Mating	Contact Material	Termination	Pitch - Mating	Number of Positions Loaded	Insulation Height	Current Rating	Contact Length - Post	Insulation Color	Contact Shape	Style	Shrouding	Note

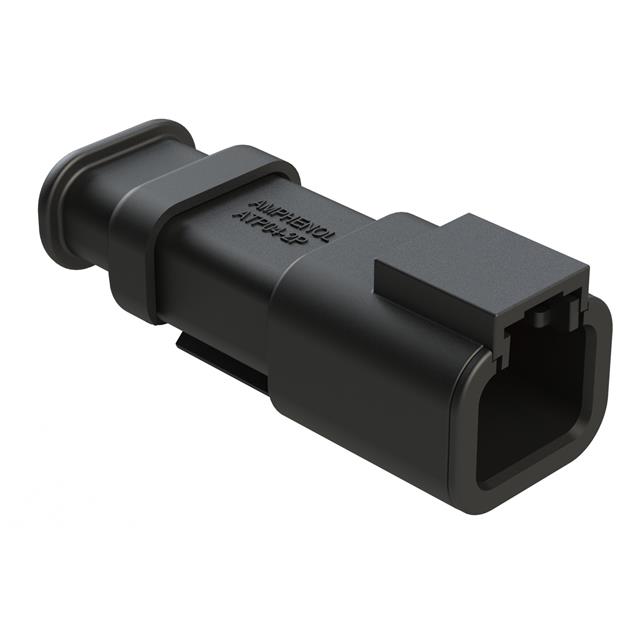

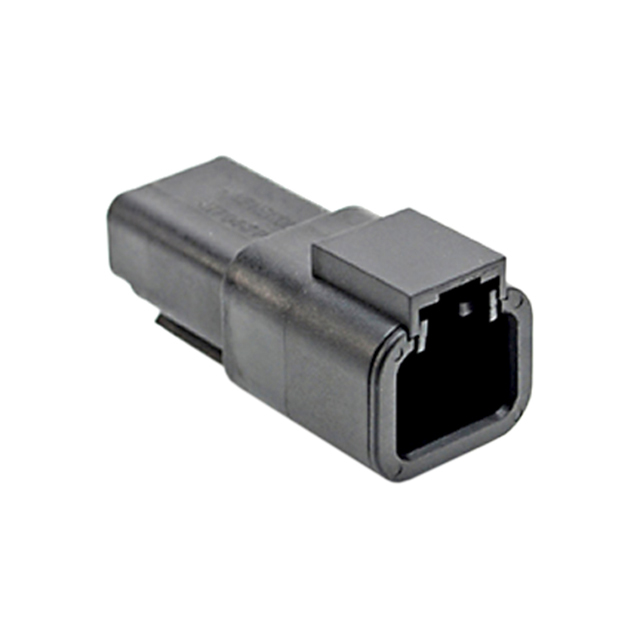

McGill Microwave Systems ATP04-2P-SR01BK	Free Hanging (In-Line)	Receptacle	125 °C	-55 °C	2	Thermoplastic	Cap (Cover) IP68 IP69K Sealed Strain Relief	Male Pin	Crimp	Black	Latch Holder	1

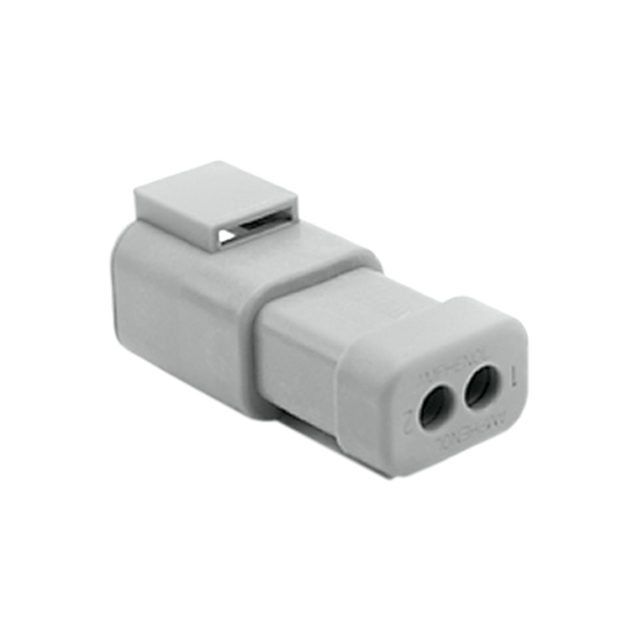

McGill Microwave Systems ATP04-2P-MM01	Free Hanging (In-Line)	Receptacle	125 °C	-55 °C	2	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Crimp	Gray	Latch Holder	1
McGill Microwave Systems ATP04-2P-BM03	Through Hole	Receptacle	125 °C	-55 °C	2	Thermoplastic	Board Guide Board Lock Sealed	Male Pin			Latch Holder	1	Tin	Dust Tight Water Resistant Waterproof	IP68 IP69K	Tin	Copper Alloy	Solder	0.264 in	All	1.126 in	25 A	0.146 in	Black	Circular	Board Cable/Wire	Shrouded - 4 Wall

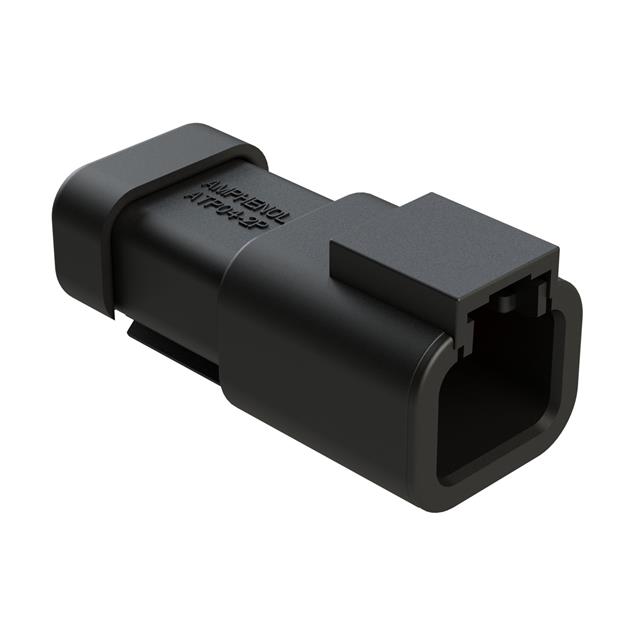

McGill Microwave Systems ATP04-2P-MM01BLK	Free Hanging (In-Line)	Receptacle	125 °C	-55 °C	2	Thermoplastic	Cap (Cover) IP68 IP69K Reduced Wire Seals	Male Pin	Crimp	Black	Latch Holder	1
McGill Microwave Systems ATP04-2P-EC01	Free Hanging (In-Line)	Receptacle	125 °C	-55 °C	2	Thermoplastic	Cap (Cover) Sealed	Male Pin	Crimp	Gray	Latch Holder	1																Contacts Not Included
McGill Microwave Systems ATP04-2P-PM08GEC	Panel Mount	Receptacle	125 °C	-55 °C	2	Thermoplastic	Cap (Cover) Sealed	Male Pin	Crimp	Black	Latch Holder	1																Contacts Not Included

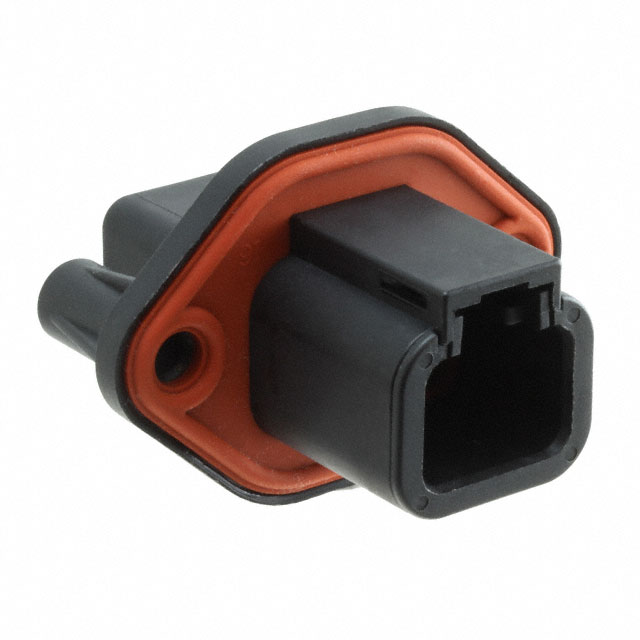

McGill Microwave Systems ATP04-2P-PM07GEC	Panel Mount	Receptacle	125 °C	-55 °C	2	Thermoplastic	Cap (Cover) Sealed	Male Pin	Crimp	Black	Latch Holder	1																Contacts Not Included

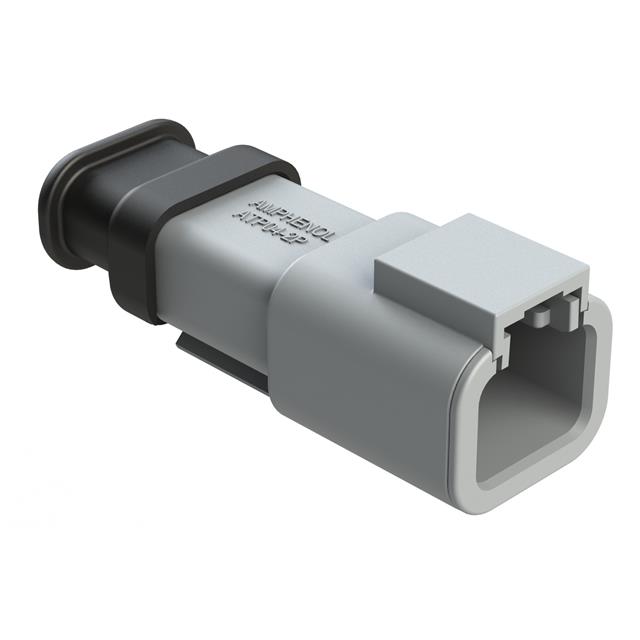

McGill Microwave Systems ATP04-2P-SR01	Free Hanging (In-Line)	Receptacle	125 °C	-55 °C	2	Thermoplastic	Cap (Cover) IP68 IP69K Sealed Strain Relief	Male Pin	Crimp	Gray	Latch Holder	1
McGill Microwave Systems ATP04-2P-BM12	Through Hole	Receptacle	125 °C	-55 °C	2	Thermoplastic	Board Guide Potting Wall Sealed	Male Pin			Latch Holder	1	Gold	Dust Tight Water Resistant Waterproof	IP68 IP69K	Gold	Copper Alloy	Solder	0.264 in	All	1.126 in	25 A	0.146 in	Black	Circular	Board Cable/Wire	Shrouded - 4 Wall
McGill Microwave Systems ATP04-2P-BLK	Free Hanging (In-Line)	Receptacle	125 °C	-55 °C	2	Thermoplastic	Sealed	Male Pin	Crimp	Black	Latch Holder	1																Contacts Not Included
