M39029/11-144
ActiveTE Connectivity AMP Connectors

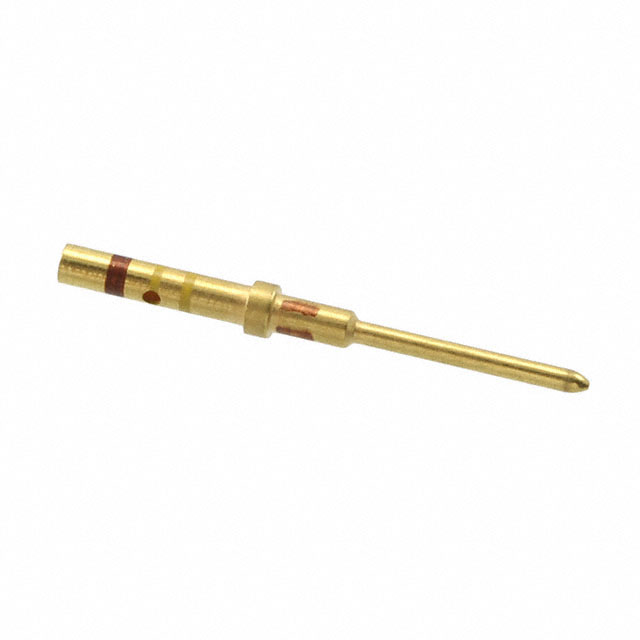

CONTACT PIN SIGNAL 22-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/11-144
ActiveTE Connectivity AMP Connectors
CONTACT PIN SIGNAL 22-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/11-144 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Termination | Crimp |
| Grade | Military |
| Pin or Socket | Pin |
| Qualification | MIL-C-39029 |
| Type | Signal |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.68 | |
| 100 | $ 0.64 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.52 | |||
| 2500 | $ 0.51 | |||
| 5000 | $ 0.43 | |||
| 10000 | $ 0.42 | |||
| Bulk | 1 | $ 4.00 | ||
| 10 | $ 3.31 | |||
| 25 | $ 3.07 | |||
| 50 | $ 2.90 | |||
| 100 | $ 2.74 | |||
| 250 | $ 2.55 | |||
| 500 | $ 2.41 | |||
| 1000 | $ 2.28 | |||
| 2500 | $ 2.12 | |||
M39029 Series
CONTACT PIN SIGNAL 22-26AWG GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Type | Contact Termination | Grade | Wire Gauge [Min] | Wire Gauge [Max] | Pin or Socket | Qualification | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors M39029/11-144 | 50 µin | 1.27 µm | Signal | Crimp | Military | 22 AWG | 26 AWG | Pin | MIL-C-39029 | Gold |
Description
General part information
M39029 Series
Contact Gold Signal Pin 22-26 AWG Crimp
Documents
Technical documentation and resources
