08015SS-24N-AL-00

Active

NMB TECHNOLOGIES

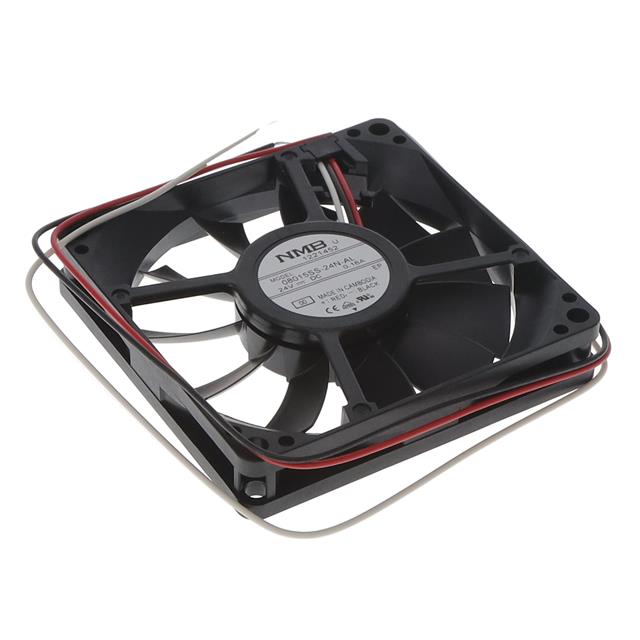

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 15 MM, SLEEVE BEARING, 33.9 CFM

08015SS-24N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 15 MM, SLEEVE BEARING, 33.9 CFM

Description Specifications Series Pricing CAD Documents

Description

General part information

08015SS Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Sleeve 33.9 CFM (0.949m³/min) 3 Wire Leads

Technical Specifications

Parameters and characteristics for this part

Specification	08015SS-24N-AL-00

Air Flow	33.9 CFM
Bearing Type	Sleeve
Current Rating	120 mA
Fan Type	Tubeaxial
Features	Auto Restart, Locked Rotor Sensor
Lifetime	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	34 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	2.88 W
RPM	3100 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.14 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	12 V
Width	15 mm

08015SS Series

Part	Material - Blade	Voltage Range (Max)	Voltage Range (Min)	Material - Frame	Current Rating	Lifetime	Noise	Power (Watts)	Bearing Type	Termination Leads Count	Termination Type	Termination	Fan Type	Voltage - Rated	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Features	RPM	Operating Temperature (Max)	Operating Temperature (Min)	Air Flow	Width	Static Pressure	Weight
NMB TECHNOLOGIES 08015SS-12M-AT-00	Plastic	13.8 VDC	6 VDC	Plastic	150 mA	40000 Hrs	31 dB	1.8 W	Sleeve	3	Wire Leads	3 Wire Leads	Tubeaxial	12 VAC	80 mm	Square	80 mm	Auto Restart Speed Sensor (Tach)	2800 RPM	158 °F	14 °F	30 CFM	15 mm	0.12 in H2O
NMB TECHNOLOGIES 08015SS-24N-AL-00	Plastic	26.4 VDC	12 V	Plastic	120 mA	40000 Hrs	34 dB	2.88 W	Sleeve	3	Wire Leads	3 Wire Leads	Tubeaxial	24 VAC	80 mm	Square	80 mm	Auto Restart Locked Rotor Sensor	3100 RPM	158 °F	14 °F	33.9 CFM	15 mm	0.14 in H2O
NMB TECHNOLOGIES 08015SS-24N-AT-00	Plastic	26.4 VDC	12 V	Plastic	120 mA	40000 Hrs	34 dB	2.88 W	Sleeve	3	Wire Leads	3 Wire Leads	Tubeaxial	24 VAC	80 mm	Square	80 mm	Auto Restart Speed Sensor (Tach)	3100 RPM	158 °F	14 °F	34 CFM	15 mm	0.14 in H2O	0.122 lb
NMB TECHNOLOGIES 08015SS-12M-AA-00	Plastic	13.8 VDC	6 VDC	Plastic	150 mA	40000 Hrs	31 dB	1.8 W	Sleeve	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	12 VAC	80 mm	Square	80 mm	Auto Restart	2800 RPM	158 °F	14 °F	30 CFM	15 mm	0.12 in H2O
NMB TECHNOLOGIES 08015SS-24N-AA-00	Plastic	26.4 VDC	12 V	Plastic	120 mA	40000 Hrs	34 dB	2.88 W	Sleeve	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	24 VAC	80 mm	Square	80 mm	Auto Restart	3100 RPM	158 °F	14 °F	33.9 CFM	15 mm	0.14 in H2O
NMB TECHNOLOGIES 08015SS-12L-AA-00	Plastic	13.8 VDC	6 VDC	Plastic	110 mA	40000 Hrs	27.5 dB	1.32 W	Sleeve	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	12 VAC	80 mm	Square	80 mm	Auto Restart	2500 RPM	158 °F	14 °F	26.8 CFM	15 mm	0.09 in H2O
NMB TECHNOLOGIES 08015SS-12N-AA-00	Plastic	13.8 VDC	6 VDC	Plastic	0.21 A	40000 Hrs	34 dB	2.52 w	Sleeve	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	12 VAC	80 mm	Square	80 mm	Auto Restart	3100 RPM	158 °F	14 °F	33.9 CFM	15 mm	0.14 in H2O
NMB TECHNOLOGIES 08015SS-12M-AL-00	Plastic	13.8 VDC	6 VDC	Plastic	150 mA	40000 Hrs	31 dB	1.8 W	Sleeve	3	Wire Leads	3 Wire Leads	Tubeaxial	12 VAC	80 mm	Square	80 mm	Auto Restart Locked Rotor Sensor	2800 RPM	158 °F	14 °F	30 CFM	15 mm	0.12 in H2O
NMB TECHNOLOGIES 08015SS-12L-AT-00	Plastic	13.8 VDC	6 VDC	Plastic	110 mA	40000 Hrs	27.5 dB	1.32 W	Sleeve	3	Wire Leads	3 Wire Leads	Tubeaxial	12 VAC	80 mm	Square	80 mm	Auto Restart Speed Sensor (Tach)	2500 RPM	158 °F	14 °F	26.8 CFM	15 mm	0.09 in H2O
NMB TECHNOLOGIES 08015SS-12L-AL-00	Plastic			Plastic					Sleeve	3	Wire Leads	3 Wire Leads	Tubeaxial	12 VAC	80 mm	Square	80 mm	Auto Restart Locked Rotor Sensor		158 °F	14 °F		15 mm
