P-170SCS/A02
ObsoletePanasonic Industrial Automation Sales

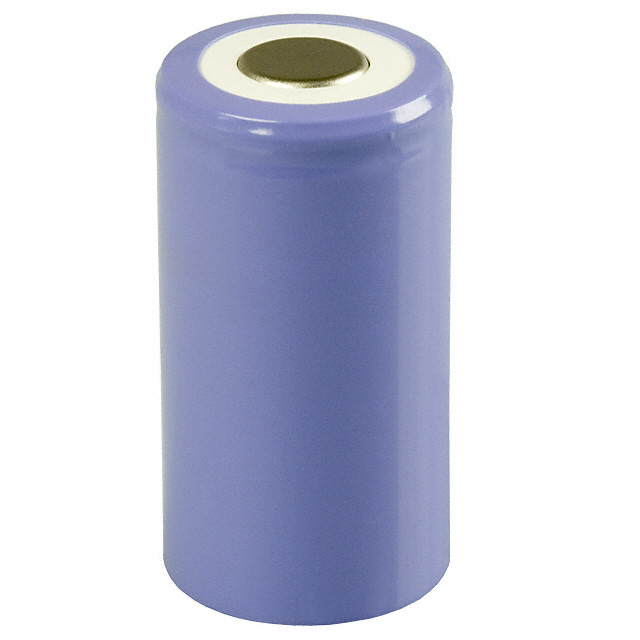

BATTERY NICAD 1.2V 1.7AH SC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P-170SCS/A02
ObsoletePanasonic Industrial Automation Sales
BATTERY NICAD 1.2V 1.7AH SC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P-170SCS/A02 |
|---|---|
| Battery Cell Size | SC |
| Battery Chemistry | Nickel Cadmium |
| Capacity | 1.7 Ah |
| Discharge Rate | 340 mA |
| Size / Dimension [diameter] | 23 mm |
| Size / Dimension [diameter] | 0.91 " |
| Size / Dimension [z] | 43 mm |
| Size / Dimension [z] | 1.69 in |
| Standard Charge Current | 170 mA |
| Standard Charge Time | 16 Hrs |
| Termination Style | Flat Top (Non-Extending) |
| Voltage - Rated | 1.2 V |
| Weight | 48.53 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
P-170 Series
SC 1.2 V Nickel Cadmium Battery Rechargeable (Secondary) 1.7Ah
