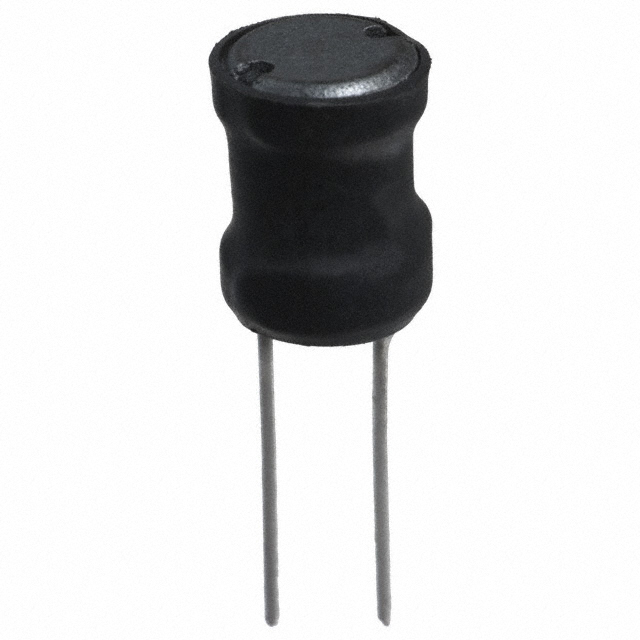

6000-1R0M-RC

Bourns Inc.

FIXED IND 1UH 10A 13 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6000-1R0M-RC

Bourns Inc.

FIXED IND 1UH 10A 13 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6000-1R0M-RC

Current Rating (Amps)	10 A
DC Resistance (DCR)	13 mOhm
Frequency - Self Resonant	150 MHz
Height - Seated (Max) [Max] [z]	0.48 "
Height - Seated (Max) [Max] [z]	12.2 mm
Inductance	1 µH
Inductance Frequency - Test	7.96 MHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	7.96 MHz, 20
Shielding	Unshielded
Size / Dimension [diameter]	9 mm
Size / Dimension [diameter]	0.354 in
Tolerance	20 %
Type	Wirewound, Drum Core

6000 Series

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency - Self Resonant	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	DC Resistance (DCR) [Max]	Tolerance	Inductance	Inductance Frequency - Test	Type	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Q @ Freq	DC Resistance (DCR)
Bourns Inc. 6000-330K-RC	9 mm	0.354 in	7.8 MHz	Through Hole	2.05 A	0.48 "	12.2 mm	Ferrite	90 mOhm	10 %	33 µH	2.52 MHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	2.52 MHz 30
Bourns Inc. 6000-150K-RC	9 mm	0.354 in	12 MHz	Through Hole	2.9 A	0.48 "	12.2 mm	Ferrite	56 mOhm	10 %	15 µH	2.52 MHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder
Bourns Inc. 6000-680K-RC	9 mm	0.354 in	4.9 MHz	Through Hole	1.36 A	0.48 "	12.2 mm	Ferrite		10 %	68 µH	2.52 MHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	2.52 MHz 30	210 mOhm
Bourns Inc. 6000-471K	9 mm	0.354 in	1.9 MHz	Through Hole	0.68 A	0.48 "	12.2 mm	Ferrite	1.1 Ohm	10 %		796 kHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	20 796 kHz
Bourns Inc. 6000-331K-RC	9 mm	0.354 in	2.3 MHz	Through Hole	780 mA	0.48 "	12.2 mm	Ferrite	850 mOhm	10 %	330 µH	796 kHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	20 796 kHz
Bourns Inc. 6000-1R0M-RC	9 mm	0.354 in	150 MHz	Through Hole	10 A	0.48 "	12.2 mm	Ferrite		20 %	1 µH	7.96 MHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	7.96 MHz 20	13 mOhm
Bourns Inc. 6000-120K	9 mm	0.354 in	13 MHz	Through Hole	3.1 A	0.48 "	12.2 mm	Ferrite		10 %	12 µH	2.52 MHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder		50 mOhm
Bourns Inc. 6000-102K	9 mm	0.354 in	1.3 MHz	Through Hole	0.51 A	0.48 "	12.2 mm	Ferrite	2.9 Ohm	10 %	1 mH	252 kHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	20 252 kHz
Bourns Inc. 6000-271K-RC	9 mm	0.354 in	2.4 MHz	Through Hole	900 mA	0.48 "	12.2 mm	Ferrite	750 mOhm	10 %	270 µH	796 kHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	20 796 kHz
Bourns Inc. 6000-560K	9 mm	0.354 in	5.4 MHz	Through Hole	1.48 A	0.48 "	12.2 mm	Ferrite		10 %	56 µH	2.52 MHz	Drum Core Wirewound	Unshielded	105 ░C	-55 °C	Radial Vertical Cylinder	2.52 MHz 30	180 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 0.51

Description

General part information

6000 Series

1 µH Unshielded Drum Core, Wirewound Inductor 10 A 13mOhm Max Radial, Vertical Cylinder
