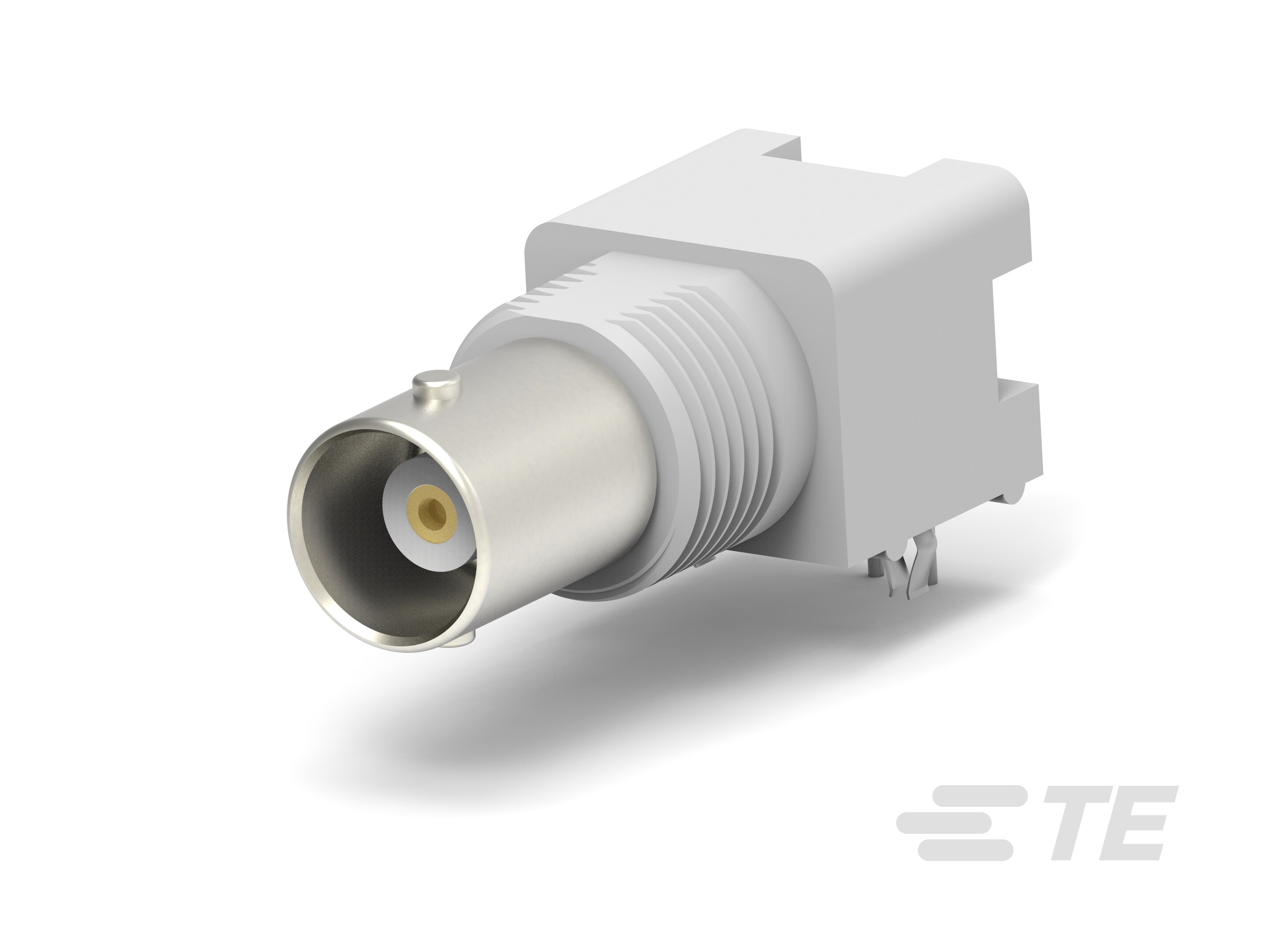

Specification	5415218-5

Body Finish	Nickel
Body Material	Zinc
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polymethylpentene (PMP)
Fastening Type	Bayonet Lock
Features	Isolated, Board Lock
Frequency - Max	4 GHz
Housing Color	Black, Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

5415218 Series

Part	Impedance	Number of Ports	Frequency - Max	Mounting Type	Connector Style	Mounting Feature	Features	Shield Termination	Connector Type	Contact Termination	Center Contact Material	Housing Color	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Voltage Rating	Dielectric Material	Mating Cycles	Body Finish	Center Contact Plating
TE Connectivity AMP Connectors 5415218-5	50 Ohm	1	4 GHz	Panel Mount Right Angle Through Hole	BNC	Bulkhead Front Side Nut	Board Lock Isolated	Solder	Female Socket Jack	Solder	Phosphor Bronze	Black Silver	Bayonet Lock	-55 °C	85 °C	Zinc	500 V	Polymethylpentene (PMP)	500 cycles	Nickel	Gold
