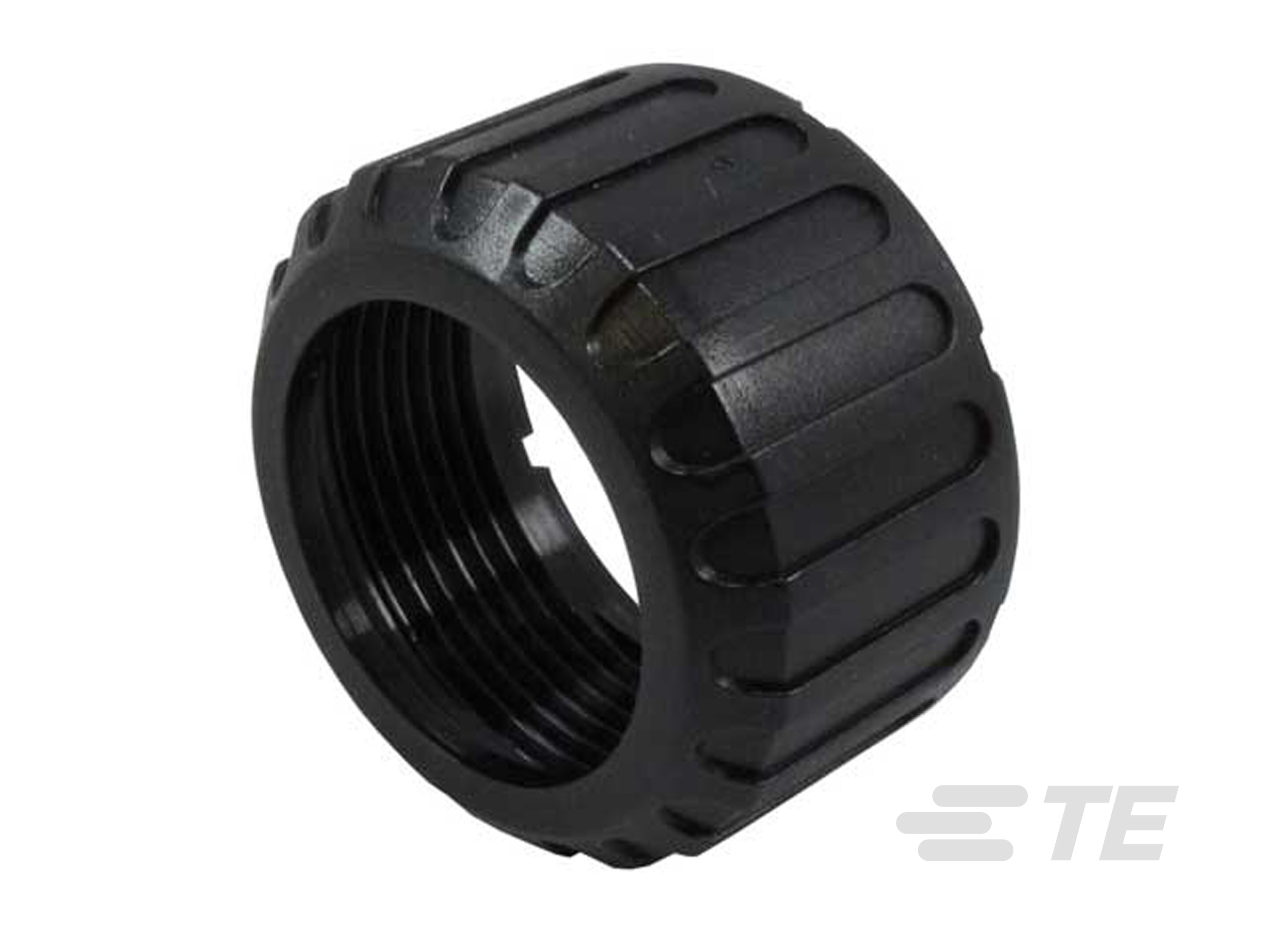

Specification	CN21

Accessory Type	Backnut
Color	Black
For Use With/Related Products	HDP20 Series Connectors with L015 Modification, SRN21
Material	Nylon 6, 6, Polyamide (PA66)
Shell Size - Insert	24
Shell Size - Insert	24

HDP20 Series

Part	Color	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Accessory Type	Material	Orientation	Housing Color	Connector Type	Contact Type	Number of Positions	Features	Primary Material	Ingress Protection IP Rating	Ingress Protection Description	Material Flammability Rating	Mounting Feature	Type	Contact Size	Fastening Type	Mounting Type	Shell Material	Shielding	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Note	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape
TE Connectivity AMP Connectors HDP74-24-47PE
TE Connectivity AMP Connectors HDP76-24-47PE
TE Connectivity AMP Connectors CN21	Black	24	24	HDP20 Series Connectors with L015 Modification SRN21	Backnut	6 Nylon 6 Polyamide (PA66)
TE Connectivity AMP Connectors YHDP24-24-29PEL024							Keyed	Black	Receptacle Housing	Crimp	29	Threading Adapter	Plastic	IP68	Dust Tight Waterproof	UL94 V-0	Bulkhead Front Side Nut	For Male Pins	12 16 20	Bayonet Lock	Panel Mount	Glass Filled Nylon 6/6 Polyamide (PA66)	Unshielded	29	24	Contacts Not Included Jam Nut Not Included	PEI Polyetherimide	125 °C	-55 °C	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
