C2524A.41.10
ActivePrysmian Group

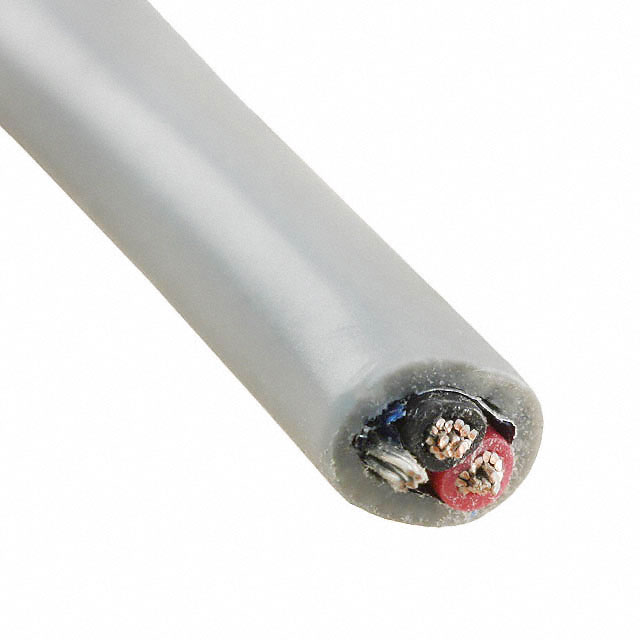

CABLE 2COND 20AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
C2524A.41.10
ActivePrysmian Group
CABLE 2COND 20AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2524A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.65 mm |
| Jacket (Insulation) Diameter [diameter] | 0.183 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 500 ', 100 ft, 50 ft |
| Length [x] | 152.4 m, 30.5 m |
| Number of Conductors | 2 |
| Ratings | ASTM B-33 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 406.29 | |
| 1 | $ 42.25 | |||
| 1 | $ 86.40 | |||
| 5 | $ 70.69 | |||
| 5 | $ 34.57 | |||
| 5 | $ 332.41 | |||
| 10 | $ 26.89 | |||
| 10 | $ 54.98 | |||
| 10 | $ 258.55 | |||
| 1000 | $ 0.41 | |||
| 2000 | $ 0.39 | |||
| 3000 | $ 0.38 | |||
| 5000 | $ 0.37 | |||
| 7000 | $ 0.36 | |||
| 10000 | $ 0.35 | |||
| 25000 | $ 0.33 | |||
Description
General part information
C2524 Series
2 Conductor Multi-Conductor Cable Gray 20 AWG Foil 1000.0' (304.8m)
Documents
Technical documentation and resources
No documents available
