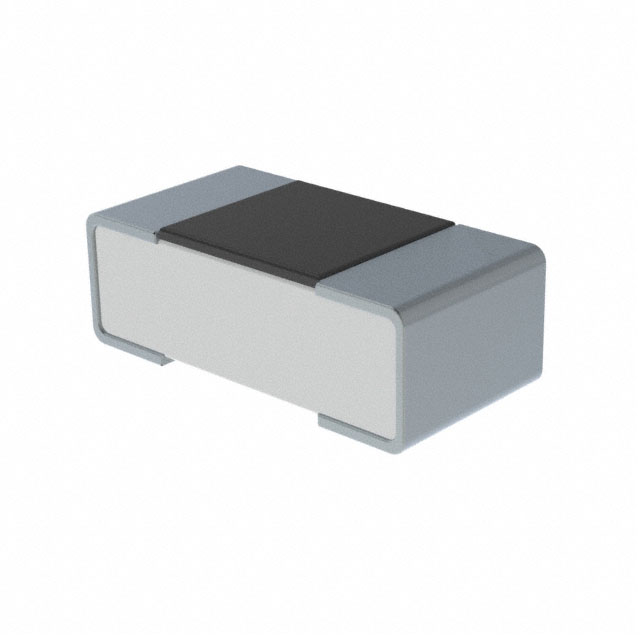

SG73S1ETTP6R2J

Active

KOA Speer Electronics, Inc.

RES 6.2 OHM 5% 1/8W 0402

SG73S1ETTP6R2J

Active

KOA Speer Electronics, Inc.

RES 6.2 OHM 5% 1/8W 0402

Description Specifications Series Pricing CAD Documents

Description

General part information

SG73S1 Series

6.2 Ohms ±5% 0.125W, 1/8W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding Thick Film

Technical Specifications

Parameters and characteristics for this part

Specification	SG73S1ETTP6R2J

Composition	Thick Film
Features	Automotive AEC-Q200, Moisture Resistant, Pulse Withstanding
Height - Seated (Max)	0.016 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	0402 (1005 Metric)
Package Name	0402
Power (Watts)	0.333 W, 0.125 W
Power (Watts) Options	1/3W, 1/8W
Ratings	AEC-Q200
Resistance	6.2 Ohm
Size / Dimension Length	0.039 in
Size / Dimension Width	0.02 in
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

SG73S1 Series

...

Part	Size / Dimension Width	Size / Dimension Length	Number of Terminations	Resistance	Composition	Ratings	Package Name	Features	Temperature Coefficient	Package / Case	Power (Watts)	Power (Watts) Options	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Tolerance
KOA Speer Electronics, Inc. SG73S1JTTD1372D	0.031 in	0.063 in	2	13.7 kOhm	Thick Film	AEC-Q200	0603	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	0603 (1608 Metric)	0.2 W	1/5W	155 °C	-55 °C	0.022 in	0.5 %
KOA Speer Electronics, Inc. SG73S1JTTD28R7D	0.031 in	0.063 in	2	28.7 Ohm	Thick Film	AEC-Q200	0603	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	0603 (1608 Metric)	0.2 W	1/5W	155 °C	-55 °C	0.022 in	0.5 %
KOA Speer Electronics, Inc. SG73S1ETTP17R4F	0.02 in	0.039 in	2	17.4 Ohm	Thick Film	AEC-Q200	0402	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	200 ppm/°C	0402 (1005 Metric)	0.125 W 0.333 W	1/3W 1/8W	155 °C	-55 °C	0.016 in	1 %
KOA Speer Electronics, Inc. SG73S1JTTD93R1F	0.031 in	0.063 in	2	93.1 Ohm	Thick Film	AEC-Q200	0603	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	0603 (1608 Metric)	0.2 W	1/5W	155 °C	-55 °C	0.022 in	1 %
KOA Speer Electronics, Inc. SG73S1ETTP6R2J	0.02 in	0.039 in	2	6.2 Ohm	Thick Film	AEC-Q200	0402	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	200 ppm/°C	0402 (1005 Metric)	0.125 W 0.333 W	1/3W 1/8W	155 °C	-55 °C	0.016 in	5 %
KOA Speer Electronics, Inc. SG73S1ETTP9100F	0.02 in	0.039 in	2	910 Ohm	Thick Film	AEC-Q200	0402	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	200 ppm/°C	0402 (1005 Metric)	0.125 W 0.333 W	1/3W 1/8W	155 °C	-55 °C	0.016 in	1 %
KOA Speer Electronics, Inc. SG73S1JTTD64R9F	0.031 in	0.063 in	2	64.9 Ohm	Thick Film	AEC-Q200	0603	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	0603 (1608 Metric)	0.2 W	1/5W	155 °C	-55 °C	0.022 in	1 %
KOA Speer Electronics, Inc. SG73S1JTTD3243D	0.031 in	0.063 in	2	324 kOhm	Thick Film	AEC-Q200	0603	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	0603 (1608 Metric)	0.2 W	1/5W	155 °C	-55 °C	0.022 in	0.5 %
KOA Speer Electronics, Inc. SG73S1JTTD623J	0.031 in	0.063 in	2	62 kOhm	Thick Film	AEC-Q200	0603	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	0603 (1608 Metric)	0.2 W	1/5W	155 °C	-55 °C	0.022 in	5 %
KOA Speer Electronics, Inc. SG73S1JTTD2872F	0.031 in	0.063 in	2	28.7 kOhm	Thick Film	AEC-Q200	0603	Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	100 ppm/°C	0603 (1608 Metric)	0.2 W	1/5W	155 °C	-55 °C	0.022 in	1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SG73S1ETTP6R2J | Datasheet
