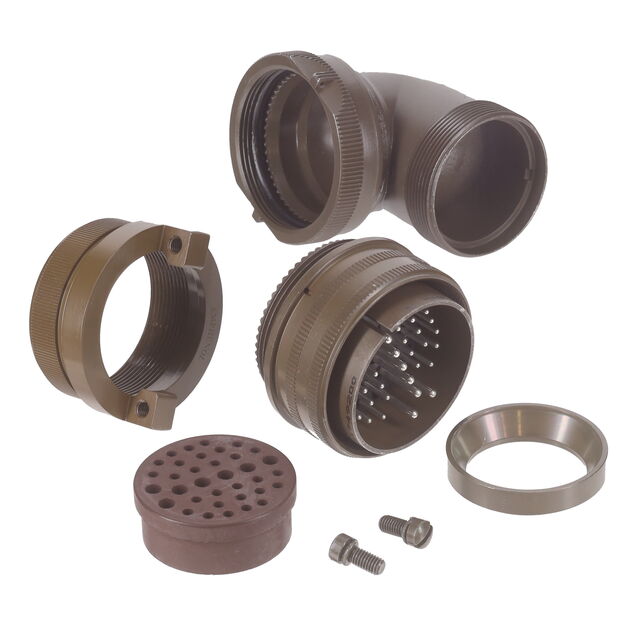

MS3108E32-7P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E32-7P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108E32-7P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 1.156 in |
| Cable Opening [custom] | 29.36 mm |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A, 23 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 35 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 32 |
| Shell Size - Insert [Min] | 7 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 109.34 | |
| 10 | $ 100.33 | |||
| 25 | $ 96.48 | |||
| 50 | $ 93.26 | |||
| 100 | $ 88.11 | |||
MS3108E32 Series
MIL-5015 MS/AC THREADED PLUG
| Part | Grade | Color | Applications | Cable Opening [custom] | Cable Opening [custom] | Contact Finish - Mating | Ingress Protection | Number of Positions | Current Rating (Amps) | Qualification | Mounting Type | Contact Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Primary Material | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features | Orientation | Shielding | Insert Material | Shell Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E32-7P | Military | Olive Drab | Marine, Military | 1.156 in | 29.36 mm | Silver | Environment Resistant | 35 | 13 A, 23 A | MIL-DTL-5015 | Free Hanging (In-Line), Right Angle | Copper Alloy | 7 | 32 | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Cable Clamp, Coupling Nut | N | Unshielded | Neoprene | Aluminum Alloy | Male Pins, Plug |
Description
General part information
MS3108E32 Series
35 Position Circular Connector Plug, Male Pins Solder Cup
