4P02-2A02-DA

Active

3M (TC)

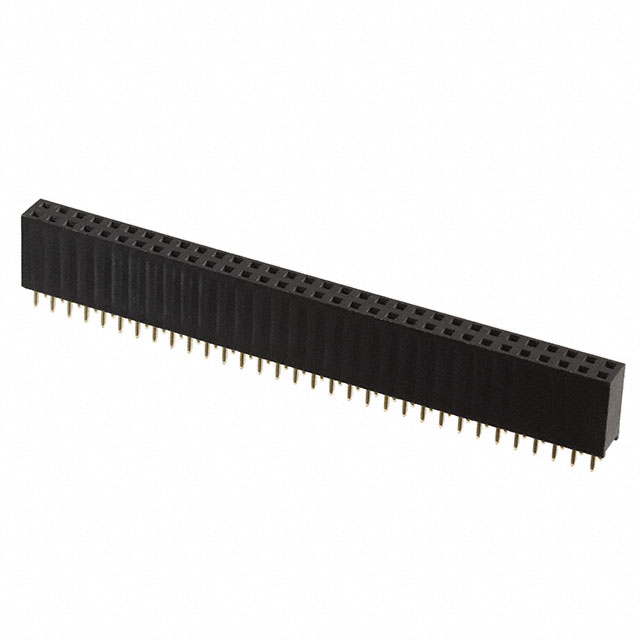

CONNECTOR, 4P02 SERIES, 64 CONTACTS, 2.54 MM, RECEPTACLE, THROUGH HOLE, 2 ROWS

Search across all available documentation for this part.

Active

3M (TC)

CONNECTOR, 4P02 SERIES, 64 CONTACTS, 2.54 MM, RECEPTACLE, THROUGH HOLE, 2 ROWS

Technical Specifications

Parameters and characteristics for this part

Specification	4P02-2A02-DA

Connector Style	PC/104
Connector Type	Non-Stackthrough, (PC/104)
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	3 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Contact Finish	Mounting Type	Number of Rows	Number of Positions	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Material Flammability Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Style	Number of Positions Loaded
3M (TC) 4P02-2A02-DA	Gold	Through Hole	2	64	3 A	3 Áin	0.076 Ám	Non-Stackthrough (PC/104)	UL94 V-0	Solder	-40 °C	105 ░C	2.54 mm	0.1 in	PC/104	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Connector Non-Stackthrough, (PC/104) Through Hole PC/104
