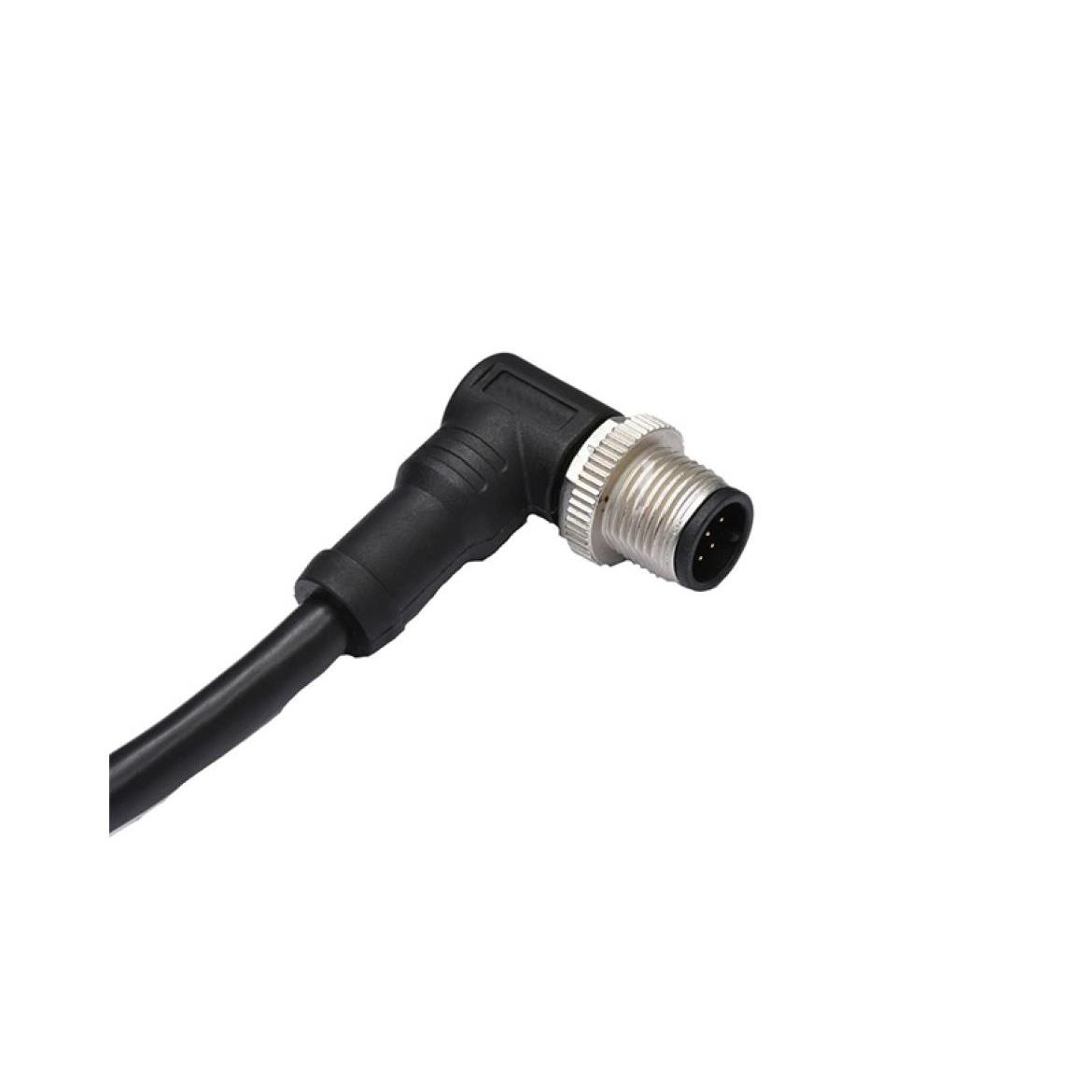

M12A-10BMMM-SR8D01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDE

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, MALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDE

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-10BMMM-SR8D01

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	10
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Type	Assembly Configuration	Shielding	Length [x]	Length [x]	1st Connector Mounting Type	Ingress Protection	Usage	1st Connector Gender	Color	Cable Type	1st Connector Orientation	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Type	Cable Material	1st Connector Number of Positions Loaded
Amphenol LTW M12A-10BMMM-SR8D01	Wire Leads	Standard	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	IP68 IP69K	Industrial Environments	Male Pins	Black	Round	A	10	M12	Receptacle Right Angle	Polyvinyl Chloride (PVC)	All
Amphenol LTW M12A-10BMMM-SL8B01	Wire Leads	Standard	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	IP68 IP69K	Industrial Environments	Male Pins	Black	Round	A	10	M12	Receptacle	Polyurethane (PUR)	All
Amphenol LTW M12A-10BMMM-SR8B01	Wire Leads	Standard	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	IP68 IP69K	Industrial Environments	Male Pins	Black	Round	A	10	M12	Receptacle Right Angle	Polyurethane (PUR)	All
Amphenol LTW M12A-10BMMM-SL8A01	Wire Leads	Standard	Unshielded	1 m	3.28 ft	Free Hanging (In-Line)	IP68 IP69K	Industrial Environments	Male Pins	Yellow	Round	A	10	M12	Receptacle	Polyvinyl Chloride (PVC)	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly 3.28' (1.00m)
