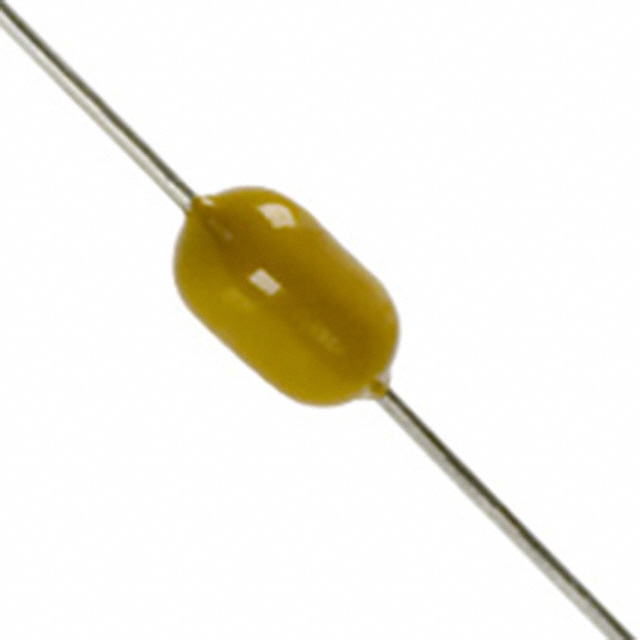

C440C334K5R5TA7200

Active

KEMET

CAP CER 0.33UF 50V X7R AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC440C334K5R5TA7200 Datasheet

C440C334K5R5TA7200

Active

KEMET

CAP CER 0.33UF 50V X7R AXIAL

Deep-Dive with AI

DocumentsC440C334K5R5TA7200 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C440C334K5R5TA7200

Applications	General Purpose
Capacitance	0.33 µF
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.15 in
Size / Dimension [diameter]	3.81 mm
Size / Dimension [z]	10.16 mm
Size / Dimension [z]	0.4 "
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	50 VDC

C440C Series

Part	Mounting Type	Features	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Voltage - Rated	Package / Case	Tolerance	Applications	Temperature Coefficient	Capacitance	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Tolerance [Max]	Tolerance [Min]
KEMET C440C103K5G5TA	Through Hole	Low ESL	0.15 in	10.16 mm	0.4 "	3.81 mm	-55 °C	125 °C	Straight	50 VDC	Axial	10 %	General Purpose	C0G NP0	10000 pF
KEMET C440C103J1G5TA	Through Hole	Low ESL	0.15 in	10.16 mm	0.4 "	3.81 mm	-55 °C	125 °C	Straight	100 V	Axial	5 %	General Purpose	C0G NP0	10000 pF
KEMET C440C105Z5U5TA	Through Hole		0.15 in	10.16 mm	0.4 "	3.81 mm			Straight	50 VDC	Axial		General Purpose	Z5U	1 µF	10 °C	85 °C	80 %	-20 %
KEMET C440C334K5R5TA	Through Hole		0.15 in	10.16 mm	0.4 "	3.81 mm	-55 °C	125 °C	Straight	50 VDC	Axial	10 %	General Purpose	X7R	0.33 µF
KEMET C440C334K5R5TA7200	Through Hole		0.15 in	10.16 mm	0.4 "	3.81 mm	-55 °C	125 °C	Straight	50 VDC	Axial	10 %	General Purpose	X7R	0.33 µF
KEMET C440C103J5G5TA7200	Through Hole	Low ESL	0.15 in	10.16 mm	0.4 "	3.81 mm	-55 °C	125 °C	Straight	50 VDC	Axial	5 %	General Purpose	C0G NP0	10000 pF
KEMET C440C224M1U5TA7200	Through Hole		0.15 in	10.16 mm	0.4 "	3.81 mm			Straight	100 V	Axial	20 %	General Purpose	Z5U	0.22 µF	10 °C	85 °C
KEMET C440C105K5R5TA	Through Hole		0.15 in	10.16 mm	0.4 "	3.81 mm	-55 °C	125 °C	Straight	50 VDC	Axial	10 %	General Purpose	X7R	1 µF
KEMET C440C684M5U5TA7200	Through Hole		0.15 in	10.16 mm	0.4 "	3.81 mm			Straight	50 VDC	Axial	20 %	General Purpose	Z5U	680 nF	10 °C	85 °C
KEMET C440C103J1G5TA7200	Through Hole	Low ESL	0.15 in	10.16 mm	0.4 "	3.81 mm	-55 °C	125 °C	Straight	100 V	Axial	5 %	General Purpose	C0G NP0	10000 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.41
		10	$ 0.35
		50	$ 0.22
		100	$ 0.24
		500	$ 0.14
		1000	$ 0.12
	Tape & Reel (TR)	2500	$ 0.15
		5000	$ 0.10
		7500	$ 0.10
		12500	$ 0.10
		17500	$ 0.10
		25000	$ 0.09
		62500	$ 0.09

Description

General part information

C440C Series

0.33 µF ±10% 50V Ceramic Capacitor X7R Axial

Documents

Technical documentation and resources

C440C334K5R5TA7200

Datasheet
