Specification	T2SD-20-24-F-10.00-T-NUS

Cable Termination	Crimp
Color	Black, Individual
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	3 µin
Features	Latch Lock, Polarizing Key
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.039 in
Pitch - Connector	0.079 in
Shielding	Unshielded

T2SD Series

Rectangular Cable Assemblies 2.00 mm Tiger Eye Double Row Discrete Wire Cable Assembly, Terminal

Part	Connector Type	Number of Rows	Number of Positions	Contact Finish	Pitch - Connector	Contact Finish Thickness	Cable Termination	Pitch - Cable	Color	Shielding	Features
Samtec Inc. T2SD-05-24-L-12.00-D-NDS	Socket to Socket	2	10	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key

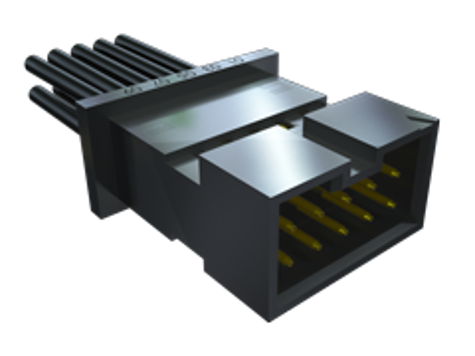

Samtec Inc. T2SD-02-24-L-10.00-T-NDX	Socket to Plug	2	4	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key
Samtec Inc. T2SD-20-24-F-10.00-T-NUS	Socket to Plug	2	40	Gold	0.079 in	3 µin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key
Samtec Inc. T2SD-15-28-L-16.00-TR-NUS	Socket to Plug	2	30	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key
Samtec Inc. T2SD-20-24-L-07.93-TR-NUS	Socket to Plug	2	40	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key
Samtec Inc. T2SD-20-24-L-10.00-T-NUS	Socket to Plug	2	40	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key

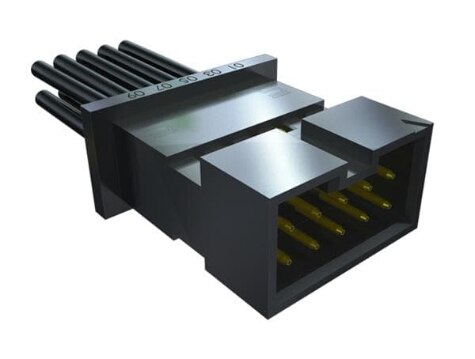

Samtec Inc. T2SD-07-28-L-03.25-D-NUS	Socket to Socket	2	14	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key
Samtec Inc. T2SD-05-30-L-08.25-T-NDS	Socket to Plug	2	10	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key
Samtec Inc. T2SD-07-24C-F-03.01-S	Socket to Individual Wire Leads	2	14	Gold	0.079 in	3 µin	Crimp	0.039 in	Individual Multiple	Unshielded	Latch Lock Polarizing Key
Samtec Inc. T2SD-10-26-L-04.00-S	Socket to Individual Wire Leads	2	20	Gold	0.079 in	10 Ąin	Crimp	0.039 in	Black Individual	Unshielded	Latch Lock Polarizing Key
