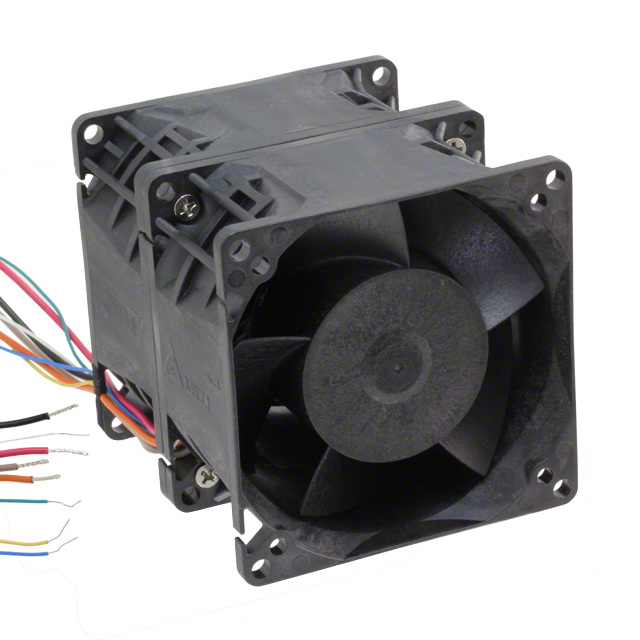

GFM0812DUB7S

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 10.8V TO 12.6V 190.63CFM 82.5DB 80 X 80 X 86MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 10.8V TO 12.6V 190.63CFM 82.5DB 80 X 80 X 86MM

Technical Specifications

Parameters and characteristics for this part

Specification	GFM0812DUB7S

Air Flow	5.34 m³/min
Air Flow	190.6 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	9 A
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	82.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	108 W
RPM	13200 RPM, 13800 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	1432.1 Pa
Static Pressure	5.749 in H2O
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	450.42 g
Weight	0.993 lb
Width [y]	86 mm

Part	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Features	RPM	Lifetime @ Temp.	Termination	Fan Type	Voltage - Rated	Power (Watts)	Air Flow	Air Flow	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Material - Blade	Bearing Type	Material - Frame	Noise	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Width [x]	RPM [custom]	RPM [custom]
Delta Electronics GFM0812DUB7S	10.8 VDC	12.6 VDC	9 A	Locked Rotor Protection PWM Control Speed Sensor (Tach)	13200 RPM 13800 RPM	70000 Hrs	4 Wire Leads per Fan	Tubeaxial (Dual)	12 VDC	108 W	5.34 m³/min	190.6 CFM	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	1432.1 Pa	5.749 in H2O	Plastic	Ball	Plastic	82.5 dB(A)	450.42 g	0.993 lb	80 mm	80 mm	86 mm
Delta Electronics GFM0812DS-SMB7R	10.8 VDC	12.6 VDC	2.4 A	Locked Rotor Protection PWM Control Speed Sensor (Tach)		70000 Hrs	4 Wire Leads per Fan	Tubeaxial (Dual)	12 VDC	28.8 W	2.61 m³/min	93.2 CFM	CE cURus TUV	60 °C	60 °C	-10 °C	-10 °C	1117.2 Pa	4.485 in H2O	Plastic	Ball	Plastic	73.3 dB(A)	286.22 g	0.631 lb	80 mm	80 mm		56 mm	12500 RPM	11000 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial (Dual) 12VDC Square - 80mm L x 80mm H Ball 190.6 CFM (5.34m³/min) 4 Wire Leads per Fan
