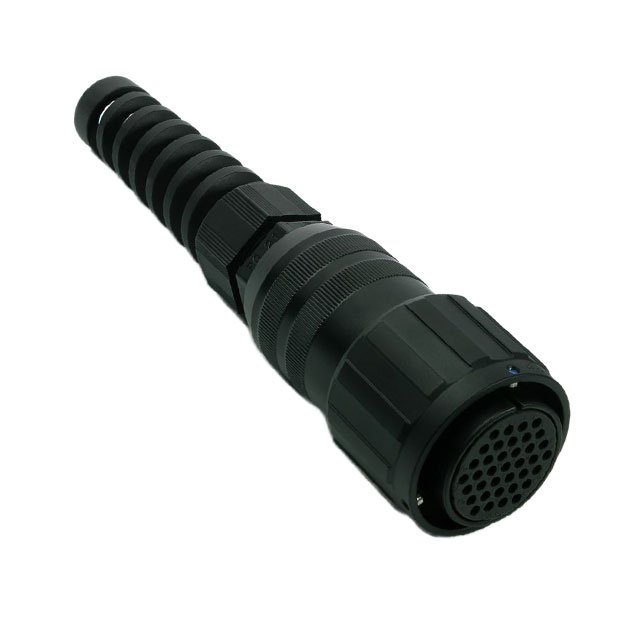

Specification	MP-4106-37S-C

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Features	PG Adapter, Dust Cap, Strain Relief, Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	37 pos
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Material	Aluminum Alloy
Termination	Solder, Crimp

MP4106 Series

Part	Contact Finish - Mating	Shell Material	Termination	Connector Type	Mounting Type	Orientation	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Features	Number of Positions	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating

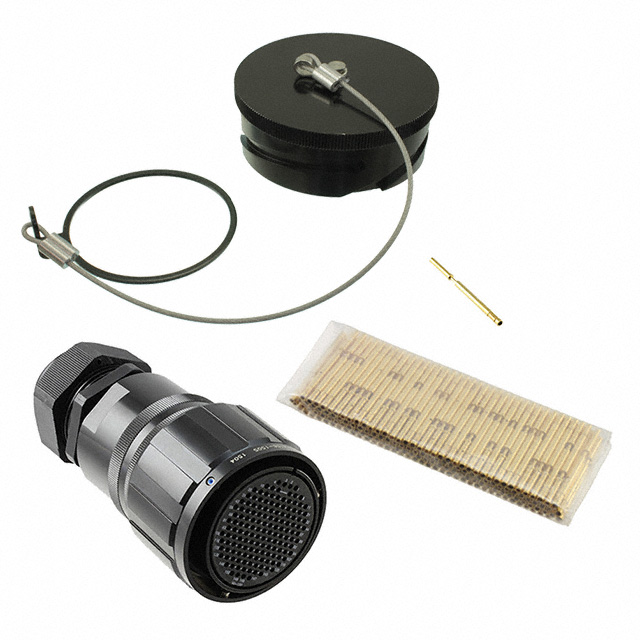

McGill Microwave Systems MP-4106-150S-C	Gold	Aluminum Alloy	Crimp	Female Sockets Plug	Free Hanging (In-Line)	Keyed	Metal	125 °C	-55 °C	Backshell Coupling Nut Dust Cap PG Adapter	150	Bayonet Lock	Dust Tight Waterproof	IP67
McGill Microwave Systems MP-4106-37S-C	Gold	Aluminum Alloy	Crimp Solder	Female Sockets Plug	Free Hanging (In-Line)	Keyed	Metal	125 °C	-55 °C	Backshell Coupling Nut Dust Cap PG Adapter Strain Relief	37 pos	Bayonet Lock	Dust Tight Waterproof	IP67
