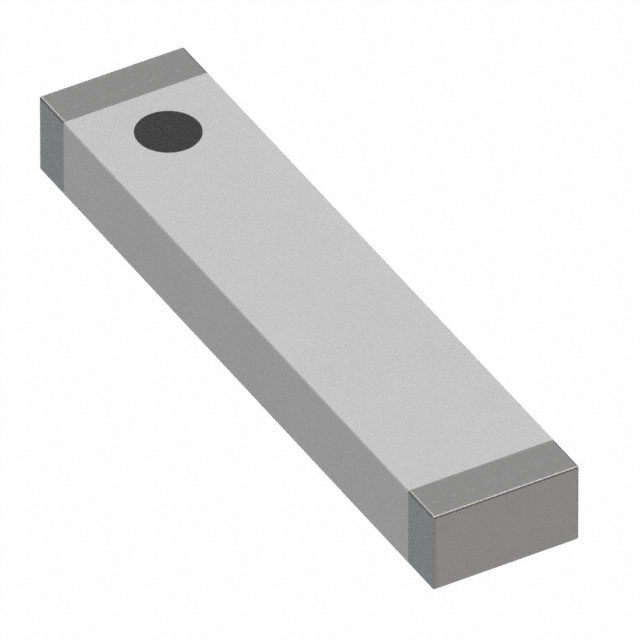

ANT9520LL06R2400A

Active

Pulse Electronics

RF ANT 2.45GHZ CHIP SOLDER SMD

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 2.45GHZ CHIP SOLDER SMD

Technical Specifications

Parameters and characteristics for this part

RF ANT 2.45GHZ CHIP SOLDER SMD

Part	Antenna Type	Termination	Power - Max [Max]	Frequency Range [Max]	Frequency Range [Min]	Gain	Return Loss	Height (Max) [Max]	Height (Max) [Max]	Number of Bands	Applications	Mounting Type
Pulse Electronics ANT9520LL06R2400A	Chip	Solder	1 W	2.5 GHz	2.4 GHz	2.85 dBi	7.36 dB	0.043 in	1.1 mm	1	Bluetooth, ISM, Wi-Fi, Zigbee™	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, ISM, Wi-Fi, Zigbee™ Chip Solder Surface Mount

Technical documentation and resources
