094-6636-0000

Active

TE Connectivity Aerospace, Defense and Marine

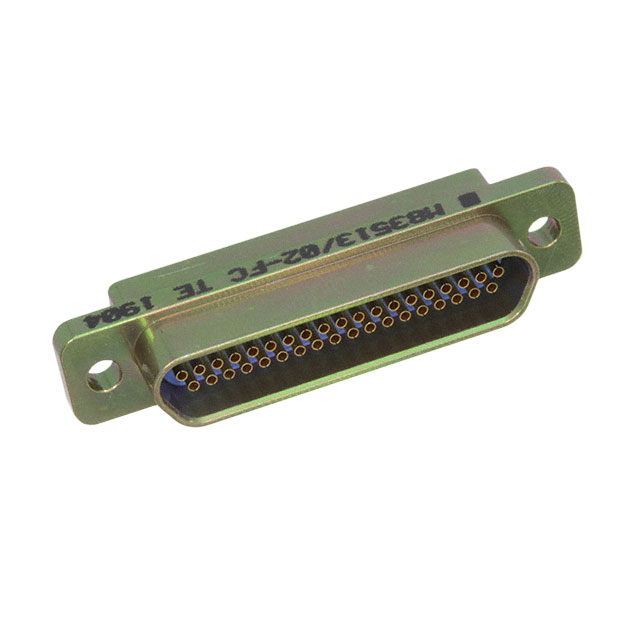

CONN MICRO-D RCPT 37POS SLDR CUP

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MICRO-D RCPT 37POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	094-6636-0000	094-6 Series

Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Type	Signal	Signal
Features	Reverse Layout	Reverse Layout
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	37	31 - 100
Number of Rows	2	2

CONN MICRO-D RCPT 31POS SLDR CUP

Part	Connector Style	Mounting Type	Contact Type	Contact Finish	Number of Rows	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Features
TE Connectivity Aerospace, Defense and Marine 094-6536-0000	D-Type, Micro-D	Free Hanging (In-Line)	Signal	Gold	2	Receptacle, Female Sockets	31	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Reverse Layout
TE Connectivity Aerospace, Defense and Marine 094-6535-0000	D-Type, Micro-D	Free Hanging (In-Line)	Signal	Gold	2	Male Pins, Plug	31	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Reverse Layout
TE Connectivity Aerospace, Defense and Marine 094-6936-0000	D-Type, Micro-D	Free Hanging (In-Line)	Signal	Gold		Receptacle, Female Sockets	100	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Reverse Layout
TE Connectivity Aerospace, Defense and Marine 094-6635-0000	D-Type, Micro-D	Free Hanging (In-Line)	Signal	Gold	2	Male Pins, Plug	37	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Reverse Layout
TE Connectivity Aerospace, Defense and Marine 094-6935-0000	D-Type, Micro-D	Free Hanging (In-Line)	Signal	Gold		Male Pins, Plug	100	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Reverse Layout
TE Connectivity Aerospace, Defense and Marine 094-6636-0000	D-Type, Micro-D	Free Hanging (In-Line)	Signal	Gold	2	Receptacle, Female Sockets	37	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Reverse Layout
