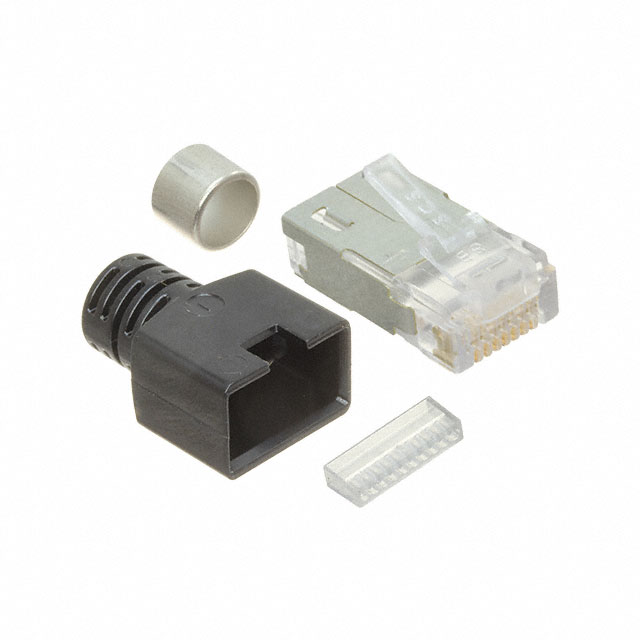

940-SP-361010-A218

Active

STEWART CONNECTOR

CONN MOD PLUG 10P10C SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

940-SP-361010-A218

Active

STEWART CONNECTOR

CONN MOD PLUG 10P10C SHIELDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.88
		10	$ 1.64
		25	$ 1.57
		50	$ 1.53
		100	$ 1.46
		250	$ 1.32
		500	$ 1.22
		1000	$ 1.05
		3000	$ 0.98
Newark	Each	1000	$ 1.20

Description

General part information

940-SP-36 Series

Plug Modular Connector 10p10c (RJ50) Position Shielded IDC

Documents

Technical documentation and resources

No documents available

Specification	940-SP-361010-A218	940-SP-36 Series

Cable Type	Flat Oval Cable, Solid or Stranded Wires	Flat Oval Cable, Solid or Stranded Wires
Color	Translucent - Clear	Translucent - Clear, Black Boot
Connector Type	Plug	Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Material	Phosphor Bronze	Phosphor Bronze, Copper Alloy
Current Rating (Amps)	1.5 A	1.5 A
Features	Molded Boot	Molded Boot, Keyed
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Length	1.286 in	0.95 - 1.345 "
Length	32.66 mm	24.13 - 34.16 mm
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet), 6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Positions/Contacts [custom]	10	10
Number of Positions/Contacts [custom]	10	10
Shield Material	Brass	Brass
Shielding	Shielded	Shielded
Termination	IDC	IDC
Voltage Rating	150 VDC	150 VDC
Wire Gauge	-	24 AWG
Wire Gauge	-	28 AWG

Part

Termination

Connector Type

Length

Contact Finish Thickness

Color

Features

Contact Material

Shielding

Shield Material

Voltage Rating

Housing Material

Contact Finish

Current Rating (Amps)

Cable Type

Number of Positions/Contacts

Number of Positions/Contacts [custom]

Wire Gauge [Min]

Wire Gauge [Max]

STEWART CONNECTOR

940-SP-360808-A218

IDC

Plug

1.345 "

34.16 mm

50 µin

1.27 µm

Translucent - Clear

Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

8p8c (RJ45, Ethernet)

STEWART CONNECTOR

940-SP-361010-RMK4-A161

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Translucent - Clear

Keyed, Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

STEWART CONNECTOR

940-SP-360606-A151

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Translucent - Clear

Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

6p6c (RJ11, RJ12, RJ14, RJ25)

STEWART CONNECTOR

940-SP-361010-K1-A108

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Translucent - Clear

Keyed, Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

STEWART CONNECTOR

940-SP-361010-A218

IDC

Plug

1.286 in

32.66 mm

50 µin

1.27 µm

Translucent - Clear

Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

STEWART CONNECTOR

940-SP-360808-031-A108

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Translucent - Clear

Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

8p8c (RJ45, Ethernet)

STEWART CONNECTOR

940-SP-360808-A161

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Translucent - Clear

Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

8p8c (RJ45, Ethernet)

STEWART CONNECTOR

940-SP-361010-RMK4-A108

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Translucent - Clear

Keyed, Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

STEWART CONNECTOR

940-SP-360808-A108

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Black Boot, Translucent - Clear

Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

8p8c (RJ45, Ethernet)

STEWART CONNECTOR

940-SP-360606-A152

IDC

Plug

1.046 in

26.57 mm

50 µin

1.27 µm

Translucent - Clear

Molded Boot

Phosphor Bronze

Shielded

Brass

150 VDC

Polycarbonate (PC)

Gold

1.5 A

Flat Oval Cable, Solid or Stranded Wires

6p6c (RJ11, RJ12, RJ14, RJ25)

Part	Termination	Connector Type	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Color	Features	Contact Material	Shielding	Shield Material	Voltage Rating	Housing Material	Contact Finish	Current Rating (Amps)	Cable Type	Number of Positions/Contacts	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
STEWART CONNECTOR 940-SP-360808-A218	IDC	Plug	1.345 "	34.16 mm	50 µin	1.27 µm	Translucent - Clear	Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires	8p8c (RJ45, Ethernet)
STEWART CONNECTOR 940-SP-361010-RMK4-A161	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Translucent - Clear	Keyed, Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires		10	10
STEWART CONNECTOR 940-SP-360606-A151	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Translucent - Clear	Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires	6p6c (RJ11, RJ12, RJ14, RJ25)
STEWART CONNECTOR 940-SP-361010-K1-A108	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Translucent - Clear	Keyed, Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires		10	10
STEWART CONNECTOR 940-SP-361010-A218	IDC	Plug	1.286 in	32.66 mm	50 µin	1.27 µm	Translucent - Clear	Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires		10	10
STEWART CONNECTOR 940-SP-360808-031-A108	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Translucent - Clear	Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires	8p8c (RJ45, Ethernet)
STEWART CONNECTOR 940-SP-360808-A161	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Translucent - Clear	Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires	8p8c (RJ45, Ethernet)
STEWART CONNECTOR 940-SP-361010-RMK4-A108	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Translucent - Clear	Keyed, Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires		10	10
STEWART CONNECTOR 940-SP-360808-A108	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Black Boot, Translucent - Clear	Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires	8p8c (RJ45, Ethernet)
STEWART CONNECTOR 940-SP-360606-A152	IDC	Plug	1.046 in	26.57 mm	50 µin	1.27 µm	Translucent - Clear	Molded Boot	Phosphor Bronze	Shielded	Brass	150 VDC	Polycarbonate (PC)	Gold	1.5 A	Flat Oval Cable, Solid or Stranded Wires	6p6c (RJ11, RJ12, RJ14, RJ25)
