CDBF0130L-HF

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 1005

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 1005

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

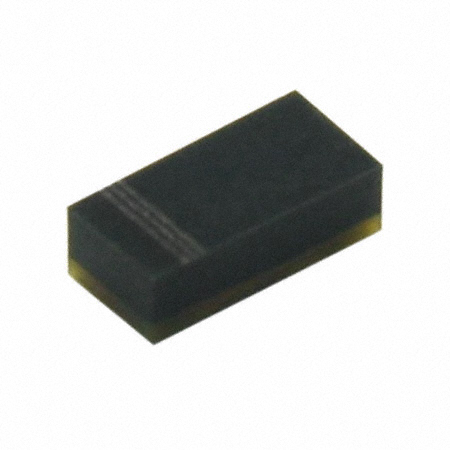

Diode 30 V 100mA Surface Mount 1005/SOD-323F

Technical documentation and resources

No documents available

Specification	CDBF0130L-HF	CDBF0130 Series

Capacitance @ Vr, F	-	9 pF
Current - Average Rectified (Io)	100 mA	100 mA
Current - Reverse Leakage @ Vr	10 µA	10 - 30 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	125 °C	125 °C
Package / Case	1005 (2512 Metric)	1005 (2512 Metric)
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	1005/SOD-323F	1005/SOD-323F
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 V
Voltage - Forward (Vf) (Max) @ If	-	440 mV
Voltage - Forward (Vf) (Max) @ If [Max]	350 mV	350 mV

Part	Operating Temperature - Junction	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Speed	Speed	Package / Case	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Technology	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]
Comchip Technology CDBF0130	125 °C	9 pF	440 mV	Surface Mount	Any Speed	200 mA	1005 (2512 Metric)	1005/SOD-323F	30 V	100 mA	Schottky	30 µA
Comchip Technology CDBF0130L-HF	125 °C			Surface Mount	Any Speed	200 mA	1005 (2512 Metric)	1005/SOD-323F	30 V	100 mA	Schottky	10 µA	350 mV
Comchip Technology CDBF0130-HF	125 °C	9 pF	440 mV	Surface Mount	Any Speed	200 mA	1005 (2512 Metric)	1005/SOD-323F	30 V	100 mA	Schottky	30 µA
