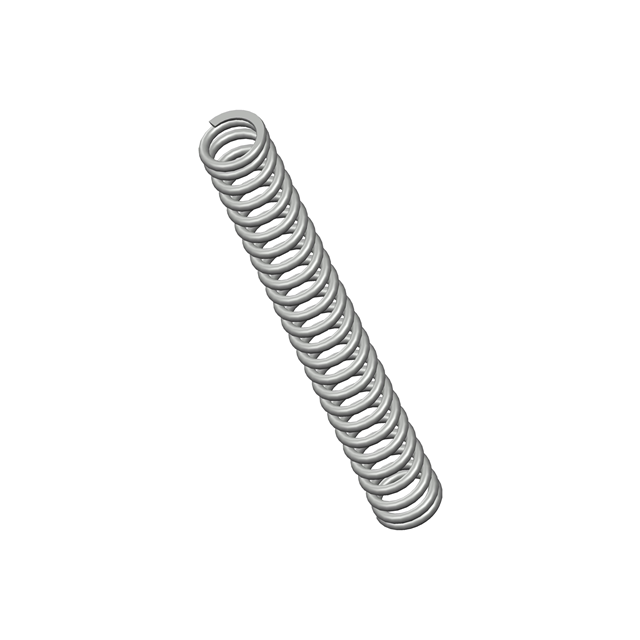

A14-35CS

Active

Century Spring Corp

COMP O= .250,L= 2.00,W= .036

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A14-35CS

Active

Century Spring Corp

COMP O= .250,L= 2.00,W= .036

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.00
		50	$ 1.68
		150	$ 1.59
		300	$ 1.50
		500	$ 1.32

Description

General part information

A14 Series

COMP O= .250,L= 2.00,W= .036

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A14-35CS	A14 Series

Diameter - Inside	-	4.62 mm
Diameter - Inside [diameter]	0.178 in	0.108 - 0.741 in
Diameter - Inside [diameter]	4.52 mm	0.182 - 18.82 mm
Diameter - Outside	-	0.125 - 0.875 in
Diameter - Outside [diameter]	6.35 mm	3.18 - 22.23 mm
Diameter - Outside [diameter]	0.25 in	0.25 in
End Style	Ground, Closed	Ground, Closed
Finish	None	None, Gold Iridite, Zinc
Free Length	2 in	0.31 - 4.5 in
Free Length	50.8 mm	7.87 - 114.3 mm
Load	-	2.1 lbs
Material	Spring Steel	Stainless Steel, Spring Steel, Music Wire
Rate	11 lbs/in	0.26 - 316 lbs/in
Type	-	Compression
Wire Diameter	-	0.016 - 0.13 in
Wire Diameter	-	0.032 - 3.3 mm
Wire Diameter	-	0.81 mm
Wire Diameter	-	0.024 "
Wire Diameter [diameter]	0.036 in	0.017 - 0.067 "
Wire Diameter [diameter]	0.91 mm	0.43 - 1.12 mm

A14 Series

COMP O= .312,L= .44,W= .038

Part	Rate	Free Length	Free Length	Wire Diameter [diameter]	Wire Diameter [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	End Style	Finish	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter	Wire Diameter	Diameter - Inside [diameter]	Type	Diameter - Outside [diameter]	Load	Wire Diameter
Century Spring Corp A14-25CS	39 lbs/in	0.44 in	11.18 mm	0.97 mm	0.038 "	0.236 in	5.99 mm	Closed, Ground	None	Stainless Steel	7.92 mm	0.312 in
Century Spring Corp A14-5CS	0.26 lbs/in	0.5 in	12.7 mm			0.168 in	4.27 mm	Closed	None	Stainless Steel	4.78 mm	0.188 "
Century Spring Corp A14-32CS	16 lbs/in	0.75 in	19.05 mm			0.375 in	9.53 mm	Closed, Ground	None	Spring Steel	11.51 mm	0.453 in	0.039 in	0.99 mm
Century Spring Corp A14-28CS	30 lbs/in	0.63 in	16 mm				0.182 in	Closed, Ground	Gold Iridite	Spring Steel	6.35 mm		0.034 in	0.86 mm	4.62 mm	Compression	0.25 in
Century Spring Corp A14-67CS	23 lbs/in	0.88 in	22.35 mm			0.636 in	16.15 mm	Closed, Ground	Gold Iridite	Spring Steel	19.05 mm	0.75 in	0.057 "	1.45 mm
Century Spring Corp A14-7CS	2 lbs/in			0.43 mm	0.017 "				None	Music Wire	3.3 mm	0.13 "						2.1 lbs
Century Spring Corp A14-24CS	65 lbs/in	0.53 in	13.46 mm			0.108 in	2.74 mm	Closed, Ground	Gold Iridite	Music Wire	4.37 mm	0.172 in		0.032 in					0.81 mm
Century Spring Corp A14-70CS	8.6 lbs/in	4.5 in	114.3 mm			0.42 in	10.67 mm	Closed, Ground	None	Stainless Steel	13.87 mm	0.546 in	0.063 in	1.6 mm
Century Spring Corp A14-69CS	19 lbs/in	1.19 in	30.23 mm			0.53 in	13.46 mm	Closed, Ground	None	Stainless Steel	16.25 mm	0.64 in	0.055 in	1.4 mm
Century Spring Corp A14-4CS	74 lbs/in	0.56 in	14.22 mm			0.401 in	10.19 mm	Closed, Ground	Gold Iridite	Spring Steel	13.08 mm	0.515 "	0.057 "	1.45 mm
