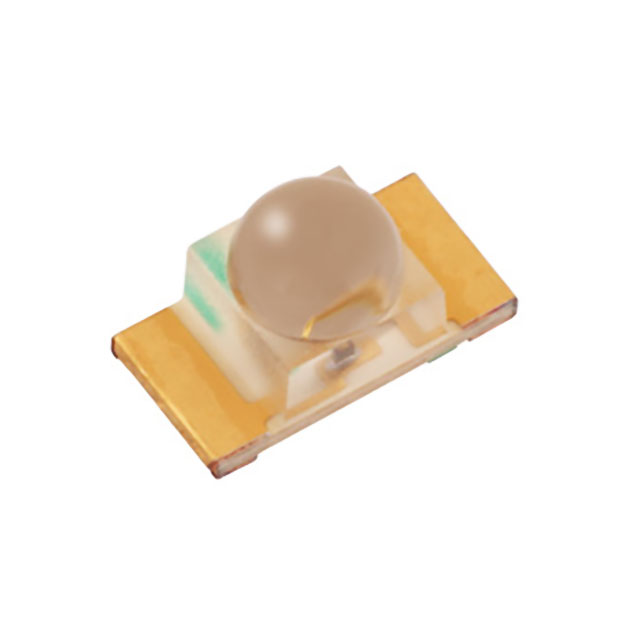

VFJD1105W-5C63A-TR
ActiveStanley Electric Co
LED YLW-GRN CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
VFJD1105W-5C63A-TR
ActiveStanley Electric Co
LED YLW-GRN CLEAR SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFJD1105W-5C63A-TR |
|---|---|
| Color | Yellow-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.95 mm |
| Lens Color | Colorless |
| Lens Size | T-3/4 |
| Lens Size [diameter] | 2 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 470 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 572 nm |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 2000 | $ 0.10 | ||
| 4000 | $ 0.09 | |||
| 6000 | $ 0.09 | |||
| 10000 | $ 0.08 | |||
| 14000 | $ 0.08 | |||
| 20000 | $ 0.08 | |||
| 50000 | $ 0.07 | |||
| 100000 | $ 0.07 | |||
Description
General part information
VFJD1105 Series
Yellow-Green 572nm LED Indication - Discrete 1.9V 1206 (3216 Metric)
Documents
Technical documentation and resources
No documents available
