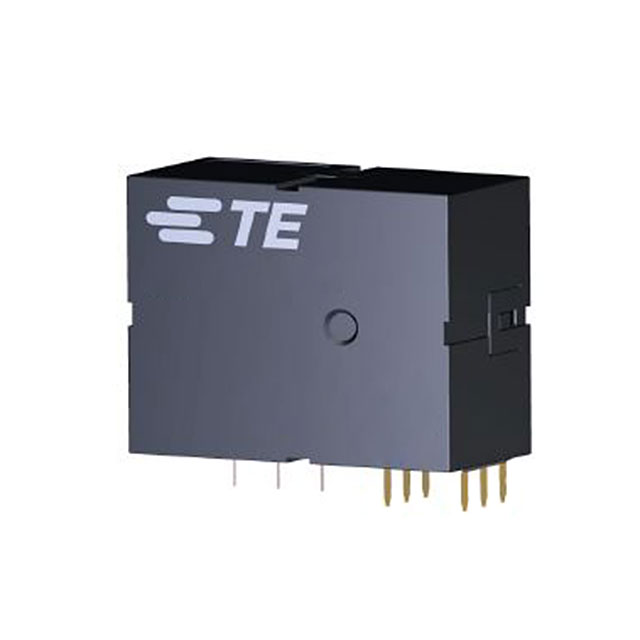

EW60-1A3-CL12D04,00000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 60A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EW60-1A3-CL12D04,00000 |
|---|---|
| Approval Agency | UL |
| Coil Current | 250 mA |
| Coil Resistance | 48 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 60 A |
| Load - Max Switching | 26400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9.6 VDC |
| Operate Time | 100 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage | 440 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.73 | |
| 10 | $ 13.98 | |||
| 25 | $ 13.28 | |||
| 50 | $ 12.58 | |||
| 100 | $ 11.88 | |||
| 250 | $ 10.83 | |||
| 450 | $ 10.13 | |||
| 950 | $ 9.61 | |||
Description
General part information
EW60-1A Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
