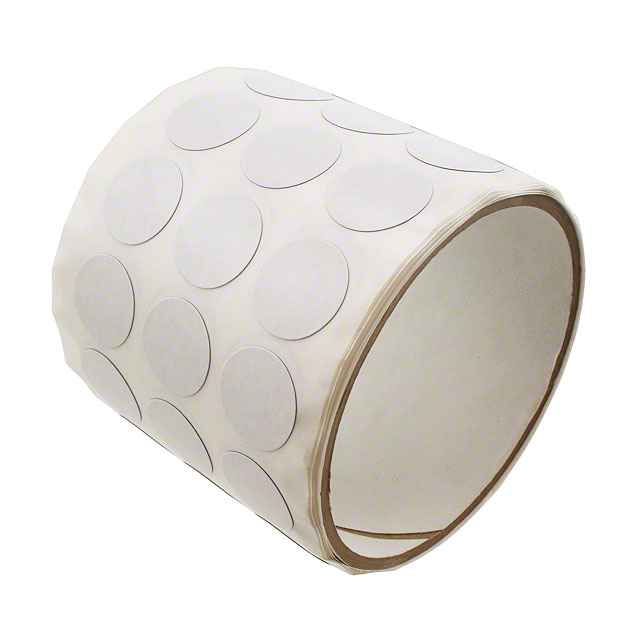

3M CN4190 CIRCLE-0.75"-250

Obsolete

3M (TC)

RF EMI SHLDING SHEET 0.75" 250PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCN-4190 Bulletin Datasheet

3M CN4190 CIRCLE-0.75"-250

Obsolete

3M (TC)

RF EMI SHLDING SHEET 0.75" 250PK

Deep-Dive with AI

DocumentsCN-4190 Bulletin Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M CN4190 CIRCLE-0.75"-250

Adhesive	Conductive, Single Sided
Material	Nickel-Copper (NI/CU) Fabric
Shape	Circular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall	0.11 mm
Thickness - Overall	0.004 in
Type	Shielding Sheet
Width	0.75 in
Width	19.1 mm

CN4190 Series

Part	Type	Length	Length	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life	Adhesive	Shape	Thickness - Overall	Thickness - Overall	Material	Width [x]	Width	Length [x]	Length [x]	Width	Width [x]
3M (TC) 3M CN4190 1/2" X 2"-100	Shielding Sheet	50.8 mm	2 in	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Rectangular	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric
3M (TC) 3M CN4190 CIRCLE-1.5"-100	Shielding Sheet			Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Circular	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric	1.5 in	38.1 mm
3M (TC) 3M CN4190 1"SQ-250	Shielding Sheet			Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Square	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric	1 in	25.4 mm	1 in	25.4 mm
3M (TC) 3M CN4190 CIRCLE-0.75"-250	Shielding Sheet			Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Circular	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric		19.1 mm			0.75 in
3M (TC) 3M CN4190 3/4" X 2"-100	Shielding Sheet	50.8 mm	2 in	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Rectangular	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric		19.1 mm			0.75 in
3M (TC) 3M CN4190 CIRCLE-0.5"-250	Shielding Sheet			Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Circular	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric
3M (TC) 3M CN4190 3/4" X 3"-100	Shielding Sheet	76.2 mm	3 in	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Rectangular	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric		19.1 mm			0.75 in
3M (TC) 3M CN4190 1/2" X 4"-100	Shielding Sheet	101.6 mm	4 in	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Rectangular	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric
3M (TC) 3M CN4190 2"SQ-100	Shielding Sheet	50.8 mm	2 in	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Square	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric	2 in					50.8 mm
3M (TC) 3M CN4190 1.5"SQ-100	Shielding Sheet	38.1 mm	1.5 "	Date of Manufacture	27 °C 80 °F	10 °C	60 Months	Conductive Single Sided	Square	0.11 mm	0.004 in	Nickel-Copper (NI/CU) Fabric	1.5 in	38.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CN4190 Series

RF EMI Shielding Sheet CN-4190 Nickel-Copper (NI/CU) Fabric Conductive, Single Sided 0.750" (19.10mm) X X 0.004" (0.11mm)

Documents

Technical documentation and resources

CN-4190 Bulletin

Datasheet
