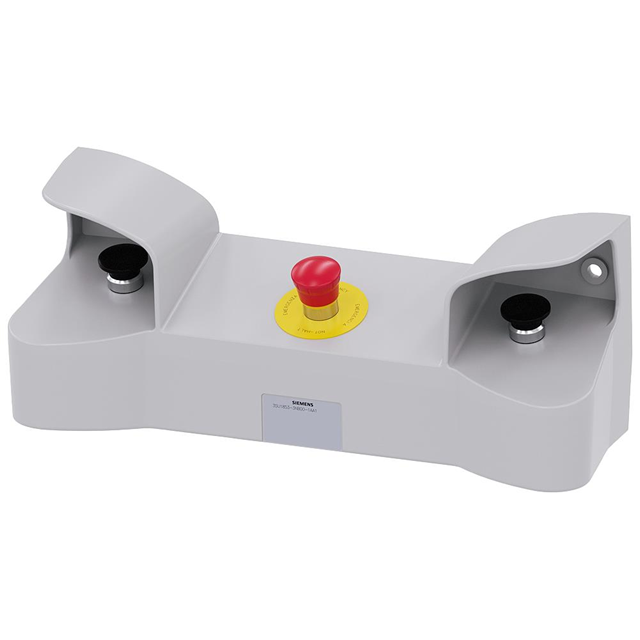

3SU18533NB001AA1

Active

Siemens

ENC METAL, 2-HAND CTRL BLK MH W/

Search across all available documentation for this part.

Active

Siemens

ENC METAL, 2-HAND CTRL BLK MH W/

Technical Specifications

Parameters and characteristics for this part

Specification	3SU18533NB001AA1

Actuator Type	Mushroom, Button, Round
Circuit	DPST-NC, DPST-NO/NC x 2
Ingress Protection	IP66
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Off-Mom, On-Mom

Part	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Voltage Rating - AC	Mounting Type	Type	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Accessory Type	For Use With/Related Products	Color - Actuator/Cap
Siemens 3SU18533NB001AA1	IP66	22.3 mm	Button Mushroom Round	70 °C	-25 °C	DPST-NC DPST-NO/NC x 2	Off-Mom On-Mom
Siemens 3SU18530AD002AB1	IP66 IP67 IP69K	22.3 mm	Button Round	70 °C	-25 °C	3PST-2NO/1NC		500 V	Panel Mount Front	Standard	500 V	10 A	Screw Terminal
Siemens 3SU18533NB001AD1														Operation Console	3SU1 Series
Siemens 3SU18530AB002AB1	IP66 IP67 IP69K	22.3 mm	Button Round	70 °C	-25 °C	DPST-NO/NC			Panel Mount Front	Standard	24 V		Screw Terminal			Black Clear White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 972.98

General part information

Pushbutton Switch DPST-NO/NC x 2 + DPST-NC
