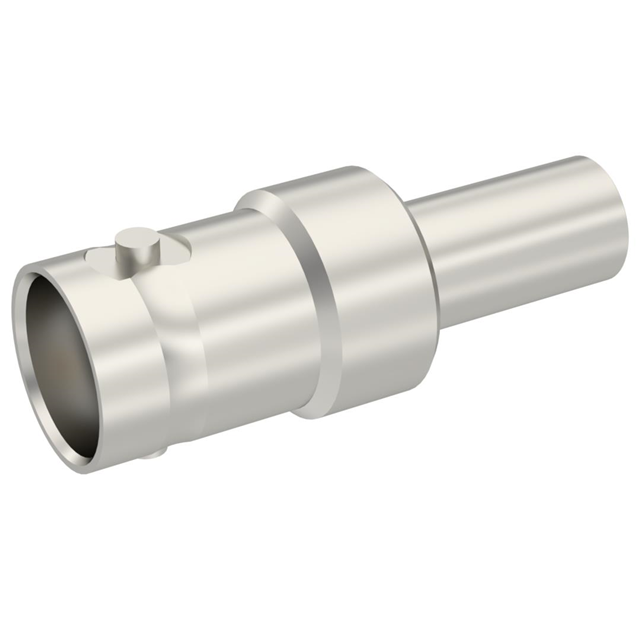

R141220000

Active

Radiall USA, Inc.

BNC F STR CR 5/50D C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC F STR CR 5/50D C100

Technical Specifications

Parameters and characteristics for this part

Specification	R141220000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Connector Style	Connector Type	Shield Termination	Frequency - Max [Max]	Body Finish	Number of Ports	Center Contact Plating	Mounting Type	Body Material	Fastening Type	Housing Color	Center Contact Material	Mating Cycles	Voltage Rating	Cable Group	Contact Termination	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R141220000	BNC	Female Socket Jack	Crimp	4 GHz	Nickel	1	Gold	Free Hanging (In-Line)	Brass	Bayonet Lock	Silver	Beryllium Copper	500	500 V	223 400 RG-142	Crimp	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.72

General part information

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
