C1WH6-F

Active

Panduit Corp

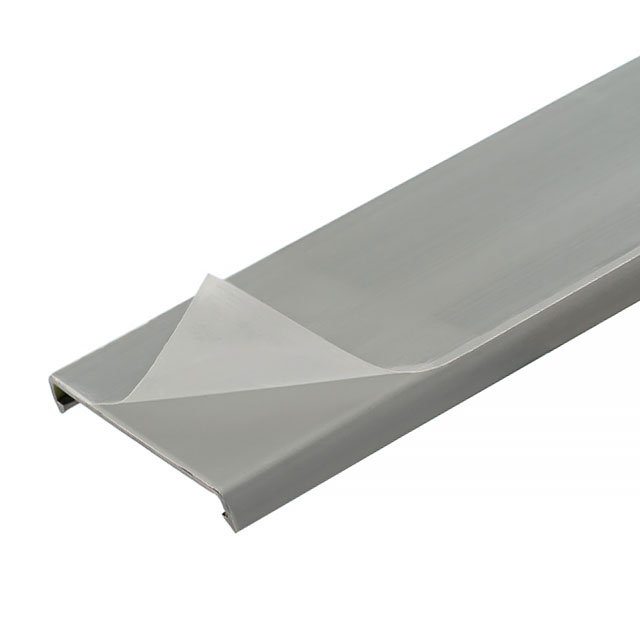

DUCT COVER, 1.8M X 31.8MM, PVC, WHITE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

DUCT COVER, 1.8M X 31.8MM, PVC, WHITE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	C1WH6-F

Accessory Type	Cover - Wire Duct, Snap In with Protective Film
Color	White
For Use With/Related Products	Panduit Duct - Slotted, Solid and Round Hole - Types D1X, F1X, FS1X, G1X and S1X
Height [z]	8.89 mm
Height [z]	0.35 in
Length	72 "
Length	1828.8 mm
Length	6 ft
Width [y]	31.75 mm
Width [y]	1.25 in

DUCT COVER, 1.8M X 31.8MM, PVC, WHITE ROHS COMPLIANT: YES

Part	Width [y]	Width [y]	For Use With/Related Products	Accessory Type	Height [z]	Height [z]	Length	Length	Length	Color
Panduit Corp C1WH6-F	31.75 mm	1.25 in	Panduit Duct - Slotted, Solid and Round Hole - Types D1X, F1X, FS1X, G1X and S1X	Cover - Wire Duct, Snap In with Protective Film	8.89 mm	0.35 in	72 "	1828.8 mm	6 ft	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cover - Wire Duct, Snap In with Protective Film White 6.000' (1828.80mm, 72.00")
