S6J32HELTNSC2D000

Active

Infineon Technologies

IC MCU 32B 4.171875MB FL 216QFP

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32B 4.171875MB FL 216QFP

Technical Specifications

Parameters and characteristics for this part

Specification	S6J32HELTNSC2D000

Connectivity	UART/USART, Ethernet, CSIO, CANbus, LINbus, I2C, SPI
Core Processor	ARM® Cortex®-R5F
Core Size	32-Bit
Data Converters [custom]	12 b
Data Converters [custom]	50
Mounting Type	Surface Mount
Number of I/O	128
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

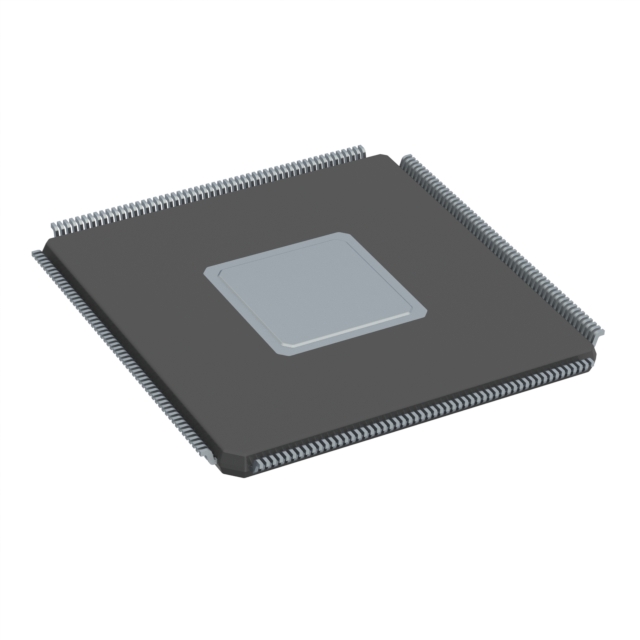

Package / Case	216-LQFP Exposed Pad
Program Memory Type	FLASH
RAM Size	2.125 M
Speed	240 MHz
Supplier Device Package	216-TEQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.1 V

Part	Number of I/O	Program Memory Type	Core Processor	Package / Case	Supplier Device Package	Speed	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Core Size	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Connectivity	Data Converters [custom]	Program Memory Size
Infineon Technologies S6J32JEKSNSE20000	120	FLASH	ARM® Cortex®-R5F	208-LQFP Exposed Pad	208-TEQFP (28x28)	240 MHz	2.125 M	105 °C	-40 °C	Internal	12 b	46	32-Bit	Surface Mount	1.1 V	5.5 V	CANbus CSIO Ethernet I2C LINbus SPI UART/USART
Infineon Technologies S6J32HELTNSC2D000	128	FLASH	ARM® Cortex®-R5F	216-LQFP Exposed Pad	216-TEQFP (24x24)	240 MHz	2.125 M	105 °C	-40 °C	Internal		50	32-Bit	Surface Mount	1.1 V	5.5 V	CANbus CSIO Ethernet I2C LINbus SPI UART/USART	12 b
Infineon Technologies S6J32JELSNSC20000	128	FLASH	ARM® Cortex®-R5F	216-LQFP Exposed Pad	216-TEQFP (24x24)	240 MHz	2.125 M	105 °C	-40 °C	Internal		50	32-Bit	Surface Mount	1.1 V	5.5 V	CANbus CSIO Ethernet I2C LINbus SPI UART/USART	12 b
Infineon Technologies S6J32BAKSESE2000A	120	FLASH	ARM® Cortex®-R5F	208-LQFP Exposed Pad	208-TQFP (28x28)	240 MHz	512 K	105 °C	-40 °C	Internal		50	32-Bit Single-Core	Surface Mount	1.15 V	5.5 V	CANbus CSIO Ethernet I2C LINbus SPI UART/USART	12 b	2.112 MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	300	$ 30.81

General part information

ARM® Cortex®-R5F Traveo™ T1G Microcontroller IC 32-Bit 240MHz 4.171875MB (4.171875M x 8) FLASH 216-TEQFP (24x24)

Technical documentation and resources
