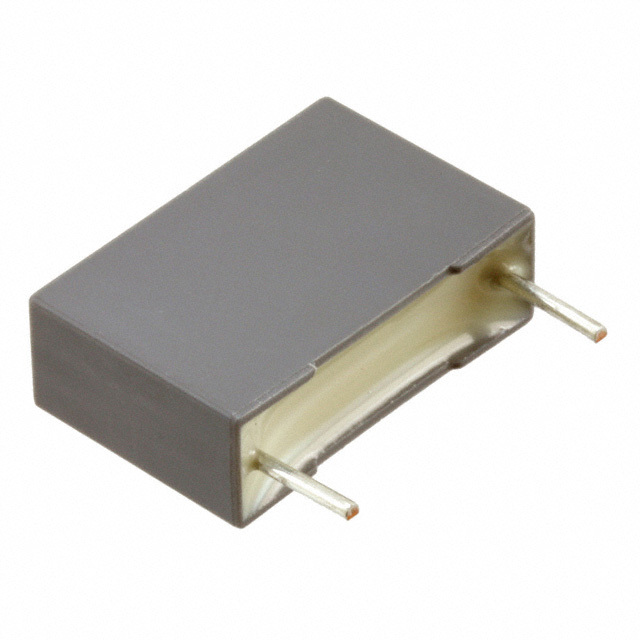

R73RI1330SE00J

Active

KEMET

CAP FILM 3300PF 5% 1.25KVDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 3300PF 5% 1.25KVDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R73RI1330SE00J

Applications	DC Filtering, DC Link, High Pulse, High Frequency, Automotive, DV/DT, Switching
Capacitance	3300 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	450 V
Voltage Rating - DC	1250 V
Voltage Rating - DC	1.25 kV

Part	Lead Spacing	Lead Spacing	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Mounting Type	Dielectric Material	Voltage Rating - AC	Package / Case	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Termination	Tolerance
KEMET R73RI1330SE00J	15 mm	0.591 in	AEC-Q200	105 ░C	-55 °C	0.709 in	0.236 in	18 mm	6 mm	3300 pF	Through Hole	Metallized Polypropylene (PP)	450 V	Radial	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	12 mm	0.472 "	1250 V	1.25 kV	PC Pins	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5250	$ 0.33
Newark	Each	2500	$ 0.33

General part information

3300 pF Film Capacitor 450V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
