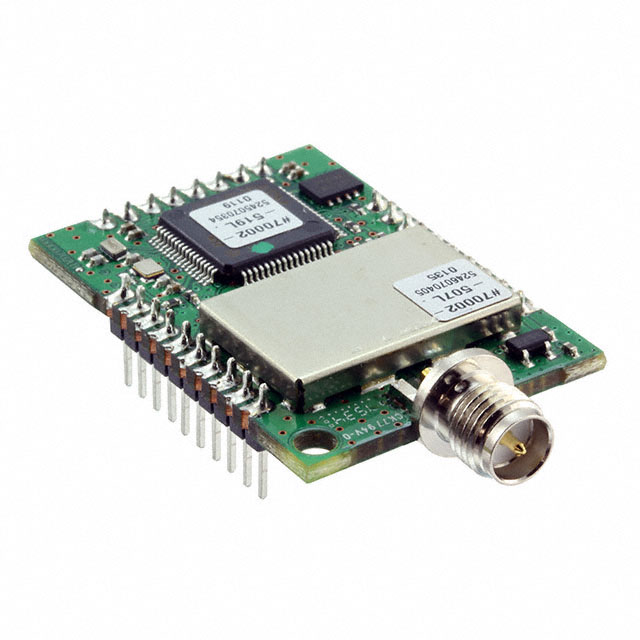

MTDOT-915-X1P-SMA-1

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD ISM<1GHZSMA TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MTDOT-915-X1P-SMA-1

Obsolete

Multi-Tech Systems Inc.

RF TXRX MOD ISM<1GHZSMA TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTDOT-915-X1P-SMA-1

Antenna Type	Antenna Not Included, SMA
Frequency	915 MHz
Memory Size [custom]	512 kB
Memory Size [custom]	128 kB
Modulation	MSK, FSK, OOK, GFSK, GMSK
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Package / Case	Module
Power - Output	15 dBm
Protocol	LoRa™
RF Family/Standard	General ISM < 1GHz
Sensitivity	-130 dBm
Serial Interfaces	UART, SPI, USB, I2C
Voltage - Supply	3.3 V

MTDOT-915 Series

Part	RF Family/Standard	Mounting Type	Power - Output	Serial Interfaces	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size [custom]	Memory Size [custom]	Modulation	Sensitivity	Voltage - Supply	Protocol	Frequency	Antenna Type	Frequency [Min]	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Multi-Tech Systems Inc. MTDOT-915-M1-UFL-1	General ISM < 1GHz	Surface Mount	15 dBm	I2C SPI UART USB	Module	70 °C	-30 ░C	512 kB	128 kB	FSK GFSK GMSK MSK OOK	-130 dBm	3.3 V	LoRa®	915 MHz	Antenna Not Included U.FL
Multi-Tech Systems Inc. MTDOT-915-X1-SMA-1	General ISM < 1GHz	Surface Mount	15 dBm	I2C SPI UART USB	Module	70 °C	-30 ░C	512 kB	128 kB	FSK GFSK GMSK MSK OOK	-130 dBm	3.3 V	LoRa®	915 MHz	Antenna Not Included SMA
Multi-Tech Systems Inc. MTDOT-915-M1-UFL-100	General ISM < 1GHz	Surface Mount	19 dBm	I2C SPI UART	Module	85 °C	-40 °C			FSK GFSK GMSK MSK OOK	-130 dBm		LoRa®		Antenna Not Included U.FL	860 MHz	1.02 GHz	5 V	3.3 V
Multi-Tech Systems Inc. MTDOT-915-X1P-SMA-1	General ISM < 1GHz	Through Hole	15 dBm	I2C SPI UART USB	Module	70 °C	-30 ░C	512 kB	128 kB	FSK GFSK GMSK MSK OOK	-130 dBm	3.3 V	LoRa™	915 MHz	Antenna Not Included SMA
Multi-Tech Systems Inc. MTDOT-915-AU-M1-UFL-100	General ISM < 1GHz	Surface Mount	19 dBm	I2C SPI UART	Module	85 °C	-40 °C			FSK GFSK GMSK MSK OOK	-130 dBm		LoRa®		Antenna Not Included U.FL	860 MHz	1.02 GHz	5 V	3.3 V
Multi-Tech Systems Inc. MTDOT-915-AU-X1P-SMA-1	General ISM < 1GHz	Surface Mount	19 dBm	I2C SPI UART	Module	85 °C	-40 °C			FSK GFSK GMSK MSK OOK	-130 dBm		LoRa®		Antenna Not Included SMA	860 MHz	1.02 GHz	5 V	3.3 V
Multi-Tech Systems Inc. MTDOT-915-X1-UFL-50	General ISM < 1GHz	Surface Mount	15 dBm	I2C SPI UART USB	Module	70 °C	-30 ░C	512 kB	128 kB	FSK GFSK GMSK MSK OOK	-130 dBm	3.3 V	LoRa®	915 MHz	Antenna Not Included U.FL
Multi-Tech Systems Inc. MTDOT-915-AU-M1-TRC-100	General ISM < 1GHz	Surface Mount	19 dBm	I2C SPI UART	Module	85 °C	-40 °C			FSK GFSK GMSK MSK OOK	-130 dBm		LoRa®		Antenna Not Included Castellation	860 MHz	1.02 GHz	5 V	3.3 V
Multi-Tech Systems Inc. MTDOT-915-AU-M1-UFL-1	General ISM < 1GHz	Surface Mount	19 dBm	I2C SPI UART	Module	85 °C	-40 °C			FSK GFSK GMSK MSK OOK	-130 dBm		LoRa®		Antenna Not Included U.FL	860 MHz	1.02 GHz	5 V	3.3 V
Multi-Tech Systems Inc. MTDOT-915-AU-X1-SMA-50	General ISM < 1GHz	Surface Mount	19 dBm	I2C SPI UART	Module	85 °C	-40 °C			FSK GFSK GMSK MSK OOK	-130 dBm		LoRa®		Antenna Not Included SMA	860 MHz	1.02 GHz	5 V	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MTDOT-915 Series

General ISM < 1GHz LoRa™ Transceiver Module 915MHz Antenna Not Included, SMA Through Hole

Documents

Technical documentation and resources
