CBL ASSY BNC PLUG TO PLUG 36"

Q-0D00J0005036i

Active

McGill Microwave Systems

CBL ASSY BNC PLUG TO PLUG 36"

Description Specifications Series Pricing CAD Documents

Description

General part information

Q-0D00J0 Series

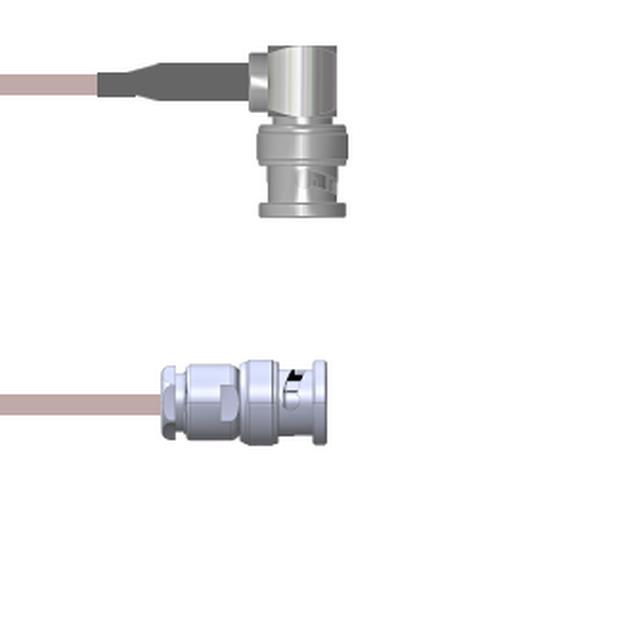

Cable Assembly Coaxial BNC to BNC RG-316 36.00" (914.40mm)

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D00J0005036i

1st Connector	Right Angle, BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG, 316
Color	Copper
Features	Shielded
Frequency - Max	4 GHz
Length	36 in
Overall Impedance	50 Ohms
Style	BNC

Q-0D00J0 Series

Part	2nd Connector	Features	Length	1st Connector Mounting Type	Color	Cable Type	1st Connector	Style	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	Overall Impedance	Frequency - Max	Length (ft)
McGill Microwave Systems Q-0D00J0005036i	BNC Plug	Shielded	36 in	Free Hanging (In-Line)	Copper	316 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0005.25M	BNC Plug	Shielded	9.843 in	Free Hanging (In-Line)	Copper	316 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0003006i	BNC Plug	Shielded	0.5 ft	Free Hanging (In-Line)	Black	174 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0003003i	BNC Plug	Shielded	3 "	Free Hanging (In-Line)	Black	174 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0005012i	BNC Plug	Shielded	12 in	Free Hanging (In-Line)	Copper	316 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0005018i	BNC Plug	Shielded	18 in	Free Hanging (In-Line)	Copper	316 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0005009i	BNC Plug	Shielded	228.6 mm	Free Hanging (In-Line)	Copper	316 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0003003M	BNC Plug	Shielded	118.1 in	Free Hanging (In-Line)	Black	174 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J0005001M	BNC Plug	Shielded	39.4 in	Free Hanging (In-Line)	Copper	316 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz
McGill Microwave Systems Q-0D00J00031.5M	BNC Plug	Shielded	59.1 in	Free Hanging (In-Line)	Black	174 RG	BNC Plug Right Angle	BNC	Free Hanging (In-Line)	Male	Male	50 Ohms	4 GHz	4.9 ft
