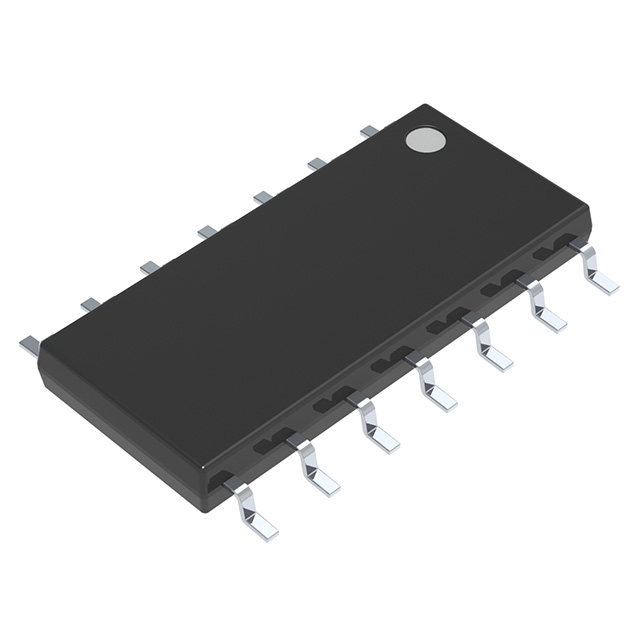

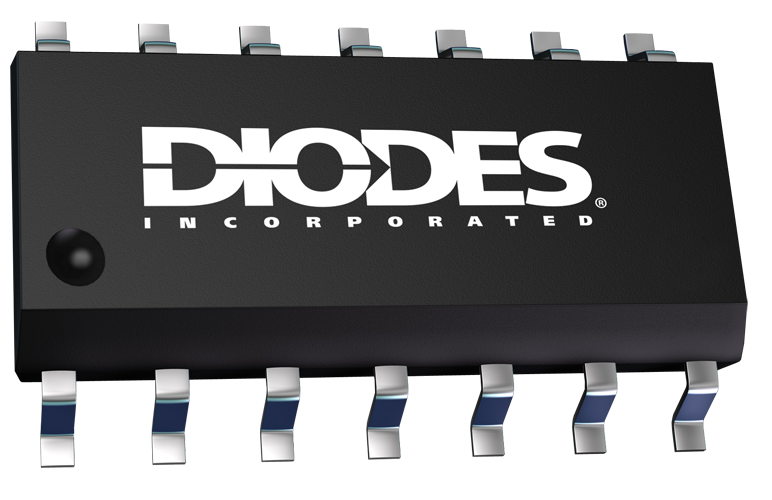

ZXMS82120S14PQ-13

Active

Diodes Inc

INTELLIFET HIGH-SIDE POWER SWITCH

Search across all available documentation for this part.

Active

Diodes Inc

INTELLIFET HIGH-SIDE POWER SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	ZXMS82120S14PQ-13

Current - Output (Max) [Max]	2.5 A
Fault Protection	Open Load Detect, Over Temperature, Reverse Battery, UVLO, Current Limiting (Adjustable), Over Voltage, Short Circuit
Features	Slew Rate Controlled
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	14-SOIC Exposed Pad
Package / Case	0.154 in
Package / Case [custom]	3.9 mm
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	100 mOhm
Supplier Device Package	14-SO-EP
Switch Type	General Purpose
Voltage - Load [Max]	28 V
Voltage - Load [Min]	5 V
Voltage - Supply (Vcc/Vdd)	False

IntelliFET High-Side Power Switch

Part	Rds On (Typ)	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output (Max) [Max]	Ratio - Input:Output [custom]	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Switch Type	Number of Outputs	Mounting Type	Output Configuration	Voltage - Supply (Vcc/Vdd)	Fault Protection	Input Type
Diodes Inc ZXMS82120S14PQ-13	100 mOhm	N-Channel	150 °C	-40 °C	Slew Rate Controlled	5 V	28 V	2.5 A	1:1	14-SOIC Exposed Pad	3.9 mm	0.154 in	14-SO-EP	General Purpose	2	Surface Mount	High Side		Current Limiting (Adjustable) Open Load Detect Over Temperature Over Voltage Reverse Battery Short Circuit UVLO	Non-Inverting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The ZXMS82120S14PQ is a dual-channel, high-side power switch in a SO-14EP exposed heatsink package incorporating protective and diagnostic functions.
