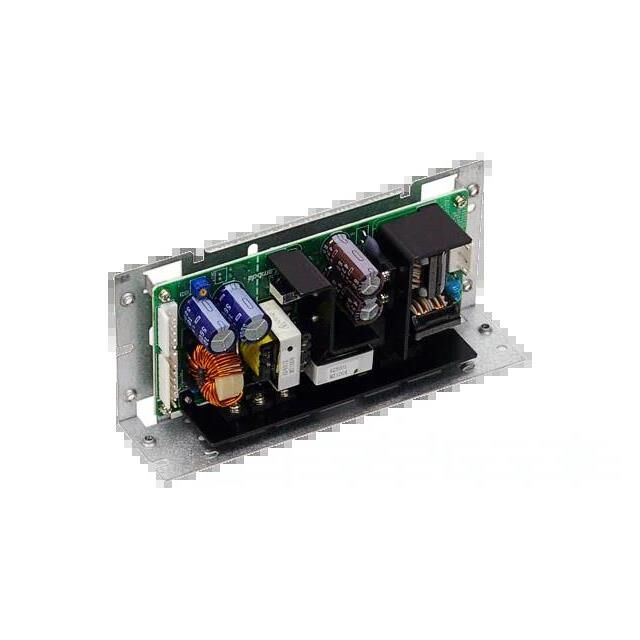

ZWS300BAF-12/L
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ACTIVE PFC, 1 OUTPUT, ADJUSTABLE, FIXED, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
ZWS300BAF-12/L
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ACTIVE PFC, 1 OUTPUT, ADJUSTABLE, FIXED, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZWS300BAF-12/L |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 25 A |
| Efficiency | 89 % |
| Features | Load Sharing, Universal Input, PFC, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 336 W |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 7.09 in |
| Size / Dimension [x] | 180 mm |
| Size / Dimension [y] | 84 mm |
| Size / Dimension [y] | 3.31 " |
| Size / Dimension [z] | 1.65 " |
| Size / Dimension [z] | 42 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
ZWS300 Series
| Part | Power (Watts) | Power (Watts) | Features | Number of Outputs | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Voltage - Isolation | Efficiency | Applications | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Enclosed | 3000 V | 89 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 12 V | 85 VAC | 265 VAC | 25 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Open Frame | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 48 V | 85 VAC | 265 VAC | 6.3 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Enclosed | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 36 V | 85 VAC | 265 VAC | 8.4 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Enclosed | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 48 V | 85 VAC | 265 VAC | 6.3 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Open Frame | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 48 V | 85 VAC | 265 VAC | 6.3 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Enclosed | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 48 V | 85 VAC | 265 VAC | 6.3 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Open Frame | 3000 V | 89 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 12 V | 85 VAC | 265 VAC | 25 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Open Frame | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 48 V | 85 VAC | 265 VAC | 6.3 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Conformal Coated Open Frame | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 36 V | 85 VAC | 265 VAC | 8.4 A |
TDK-LAMBDA | 336 W | 300 W | Adjustable Output DC Input Capable Load Sharing PFC Universal Input | 1 | 1.65 " | 7.09 in | 84 mm | 180 mm | 42 mm | 3.31 " | Enclosed | 3000 V | 88 % | ITE (Commercial) | Chassis Mount | -10 °C | 70 °C | CE cURus TUV | 24 V | 85 VAC | 265 VAC | 12.5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZWS300 Series
Open Frame AC DC Converters 1 Output 12V 85 ~ 265 VAC Input
