VNH5019A-E

Active

STMicroelectronics

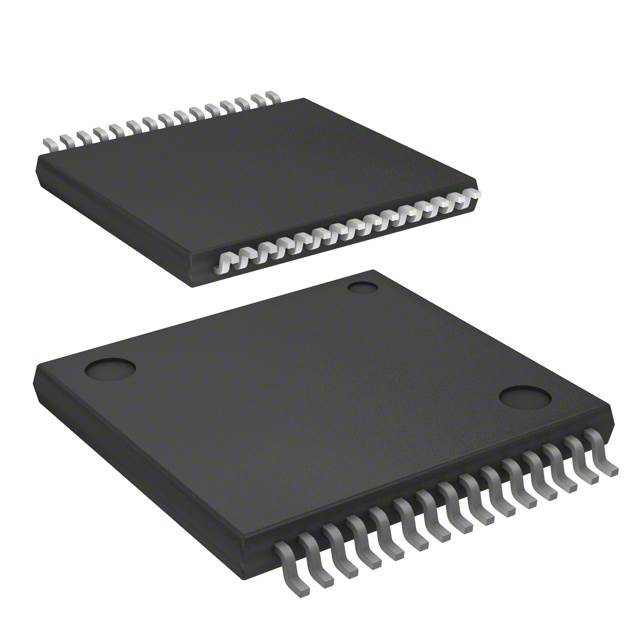

IC MTR DRV 5.5-24V MULTIPWRSO-30

Search across all available documentation for this part.

Active

STMicroelectronics

IC MTR DRV 5.5-24V MULTIPWRSO-30

Technical Specifications

Parameters and characteristics for this part

Specification	VNH5019A-E

Current - Output	30 A
Function	Driver - Fully Integrated, Control and Power Stage
Grade	Automotive
Interface	PWM, Parallel
Motor Type - AC, DC	Brushed DC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)
Package / Case	30-PowerSOP
Package / Case [y]	16 mm
Package / Case [y]	0.63 in
Supplier Device Package	MultiPowerSO-30
Technology	Power MOSFET
Voltage - Load [Max]	24 V
Voltage - Load [Min]	5.5 V
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC MTR DRV 5.5-24V MULTIPWRSO-30

Part	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Function	Package / Case [y]	Package / Case	Package / Case [y]	Mounting Type	Supplier Device Package	Technology	Grade	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Motor Type - AC, DC
STMicroelectronics VNH5019A-E	30 A	150 °C	-40 °C	Driver - Fully Integrated, Control and Power Stage	16 mm	30-PowerSOP	0.63 in	Surface Mount	MultiPowerSO-30	Power MOSFET	Automotive	5.5 V	24 V	Parallel, PWM	Half Bridge (2)	24 V	5.5 V	Brushed DC

General part information

Motor Driver Power MOSFET Parallel, PWM MultiPowerSO-30
