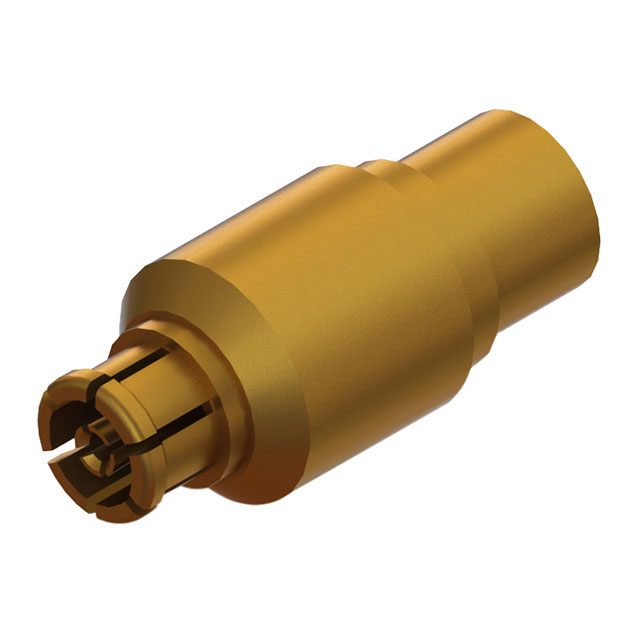

3821-40027

Obsolete

Amphenol SV Microwave

CONN SMPS JACK STR 50OHM

Search across all available documentation for this part.

Obsolete

Amphenol SV Microwave

CONN SMPS JACK STR 50OHM

Technical Specifications

Parameters and characteristics for this part

Part	Impedance	Cable Group	Mounting Type	Connector Type	Number of Ports	Connector Style	Fastening Type	Board Thickness	Board Thickness	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Type	Cable Group	Pin or Socket	Contact Finish
Amphenol SV Microwave 3821-40027	50 Ohms	0.065 "	Free Hanging (In-Line)	Female Socket Jack	1	SMPS	Snap-On
Amphenol SV Microwave 3821-40024	50 Ohms	0.085 in	Free Hanging (In-Line)					1.09 mm	0.043 in	50 µin	1.27 µm	Beryllium Copper	SMPS	RG-405	Socket	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMPS Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line)
