638652-1
ActiveTE Connectivity AMP Connectors
RECEPT,1.5MM,TIN 14-16AWG RD=1
638652-1
ActiveTE Connectivity AMP Connectors
RECEPT,1.5MM,TIN 14-16AWG RD=1
Description
General part information
638652 Series

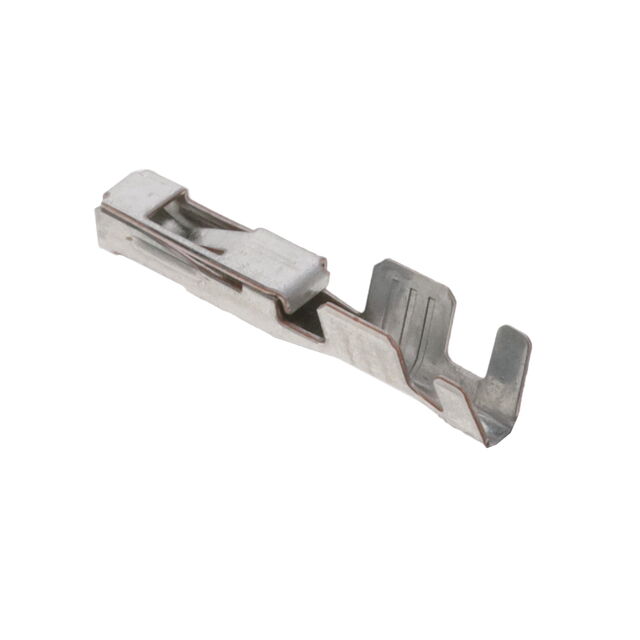

Receptacle Terminal, 14 – 16 AWG, 2.08 – 1.3 mm² Wire, 1.5 mm [.06 in] Tab Width, Tin (Sn), Unsealed, Terminates To Wire, 1.5/2.8 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 638652-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
