Q-2L0730013036i

Active

Amphenol Custom Cable

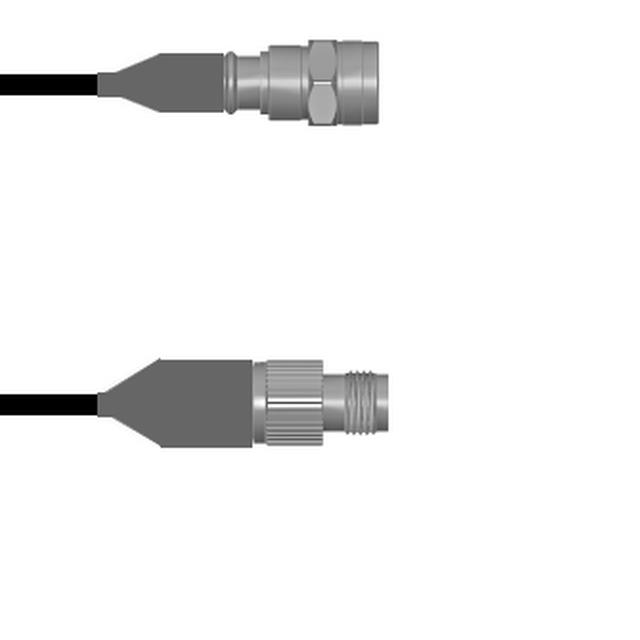

CBL ASSY NTYPE-TNC PLUG-JACK 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2L0730013036i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-JACK 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2L0730013036i

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms

Q-2L0730 Series

Part	Length	Length	2nd Contact Gender	1st Connector Mounting Type	Color	Overall Impedance	1st Contact Gender	Features	Frequency - Max [Max]	2nd Connector	2nd Connector Mounting Type	Cable Type	Length
Amphenol Custom Cable Q-2L0730013.75M	29.53 "	750 mm	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400
Amphenol Custom Cable Q-2L0730013084i	84 in	2.1 m	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400	7 ft
Amphenol Custom Cable Q-2L0730013002M	78.7 in	2 m	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400	6.6 ft
Amphenol Custom Cable Q-2L0730013060i	5 '	1.5 m	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400	5 ft
Amphenol Custom Cable Q-2L0730013036i	36 in	91.44 cm	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400
Amphenol Custom Cable Q-2L0730013108i	108 in	2.7 m	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400	9 ft
Amphenol Custom Cable Q-2L0730013006i	6 in	152.4 mm	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400
Amphenol Custom Cable Q-2L0730013024i	24 "	609.6 mm	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400
Amphenol Custom Cable Q-2L0730013009i	9 "	228.6 mm	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400
Amphenol Custom Cable Q-2L0730013003i	3 in	76.2 mm	Female	Free Hanging (In-Line)	Black	50 Ohms	Male	Shielded	6000 MHz	TNC Jack	Free Hanging (In-Line)	LMR 400

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 94.64
		25	$ 92.84
		50	$ 91.04
		100	$ 89.24
		250	$ 87.43

Description

General part information

Q-2L0730 Series

Cable Assembly Coaxial N-Type to TNC LMR 400 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
