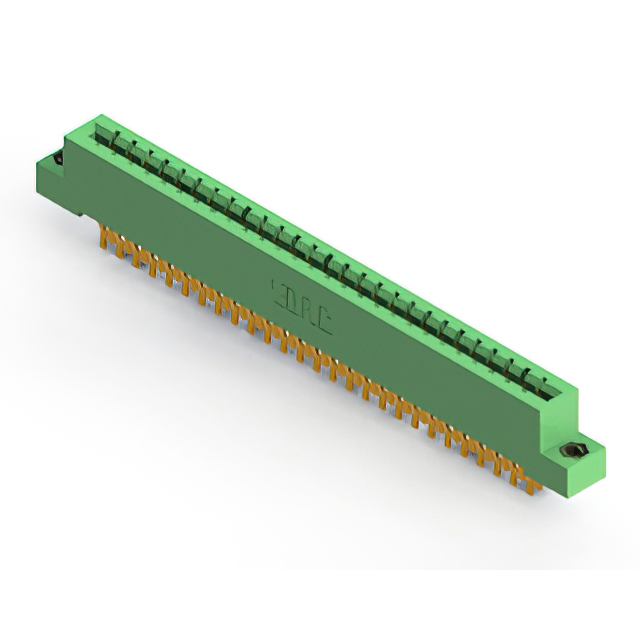

833-054-560-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 54POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

833-054-560-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 54POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	833-054-560-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	54
Number of Positions/Bay/Row [custom]	27
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

833-054 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Finish	Material - Insulation	Contact Type	Termination	Read Out	Number of Rows	Card Type	Mounting Type	Number of Positions/Bay/Row [custom]	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Gender	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Number of Positions	Features	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 833-054-521-208	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Through Hole	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54
EDAC Inc. 833-054-524-208	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Through Hole	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54
EDAC Inc. 833-054-556-201	10 Áin	0.25 Ám		Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Board Edge Straddle Mount	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54	Card Extender
EDAC Inc. 833-054-558-802	10 Áin	0.25 Ám		Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Through Hole Right Angle	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54		3.25 mm	0.128 in
EDAC Inc. 833-054-521-203	10 Áin	0.25 Ám	Floating Bobbin Flush Mount	Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Through Hole	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54				0.116 in	2.95 mm
EDAC Inc. 833-054-544-808	10 Áin	0.25 Ám	4-40 Threaded Insert Top Mount Opening	Gold	Diallyl Phthalate (DAP)	Cantilever	Wire Wrap	Dual	2	Non Specified - Dual Edge	Through Hole	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54
EDAC Inc. 833-054-559-803	10 Áin	0.25 Ám	Floating Bobbin Top Mount Opening	Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Through Hole Right Angle	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54				0.116 in	2.95 mm
EDAC Inc. 833-054-541-802	10 Áin	0.25 Ám		Gold	Diallyl Phthalate (DAP)	Cantilever	Wire Wrap	Dual	2	Non Specified - Dual Edge	Through Hole	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54		3.25 mm	0.128 in
EDAC Inc. 833-054-560-208	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Board Edge Straddle Mount	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54	Card Extender
EDAC Inc. 833-054-521-804	10 Áin	0.25 Ám	Top Mount Opening Unthreaded	Gold	Diallyl Phthalate (DAP)	Cantilever	Solder	Dual	2	Non Specified - Dual Edge	Through Hole	27	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Female	2	125 °C	-40 °C	0.156 in	3.96 mm	54				0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 75.65
Newark	Each	1	$ 91.23
		100	$ 68.86
		250	$ 59.05
		500	$ 54.27
		1000	$ 45.38

Description

General part information

833-054 Series

54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
