CB25-18-CY

Active

Panduit Corp

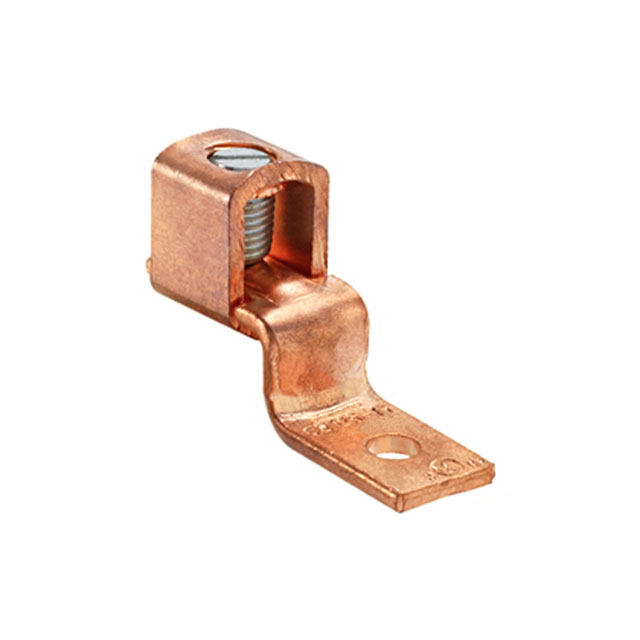

CONN TERM RECT LUG 10-14AWG #1/8

Search across all available documentation for this part.

Active

Panduit Corp

CONN TERM RECT LUG 10-14AWG #1/8

Technical Specifications

Parameters and characteristics for this part

CONN TERM RECT LUG 10-14AWG #1/8

Part	Contact Material	Stud/Tab Size	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Features	Termination	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Terminal Style	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Insulation
Panduit Corp CB25-18-CY	Copper	0.125 Stud	Grounding, Lug	7.9 mm	0.311 in	Free Hanging (In-Line)	With Screw	Screw	3.61 mm	0.142 in	Single Stud Hole	1.8 mm	0.071 in	10 AWG	14 AWG	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminal Connector Rectangular Lug, Grounding 10-14 AWG 1/8 Stud
