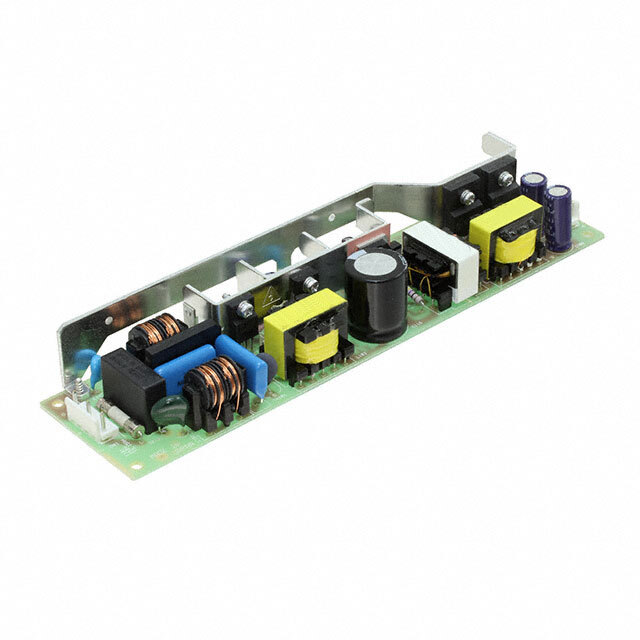

LEA75F-48-Y

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 48V 75W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LEA75F-48-Y

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 48V 75W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LEA75F-48-Y

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	1.6 A
Efficiency	86 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	75 W
Size / Dimension [x]	8.74 "
Size / Dimension [x]	222 mm
Size / Dimension [y]	2.17 in
Size / Dimension [y]	55 mm
Size / Dimension [z]	1.14 "
Size / Dimension [z]	29 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

LEA75F Series

Part	Voltage - Output 1	Features	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications	Efficiency	Type	Approval Agency	Voltage - Isolation	Power (Watts)	Mounting Type	Number of Outputs	Current - Output 1
Cosel USA, Inc. LEA75F-15-SN	15 V	PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	81 %	Enclosed	CE cURus TUV	3000 V	75 W	Chassis Mount	1	5 A
Cosel USA, Inc. LEA75F-30	30 V	PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	84 %	Open Frame	CE cURus TUV	3000 V	75 W	Chassis Mount	1	2.5 A
Cosel USA, Inc. LEA75F-30-SNY	30 V	Adjustable Output PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	84 %	Enclosed	CE cURus TUV	3000 V	75 W	Chassis Mount	1	2.5 A
Cosel USA, Inc. LEA75F-30-Y	30 V	Adjustable Output PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	84 %	Open Frame	CE cURus TUV	3000 V	75 W	Chassis Mount	1	2.5 A
Cosel USA, Inc. LEA75F-12-SNY	12 V	Adjustable Output PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	80 %	Enclosed	CE cURus TUV	3000 V	75 W	Chassis Mount	1	6.3 A
Cosel USA, Inc. LEA75F-48-Y	48 V	Adjustable Output PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	86 %	Open Frame	CE cURus TUV	3000 V	75 W	Chassis Mount	1	1.6 A
Cosel USA, Inc. LEA75F-24-C	24 V	PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	84 %	Conformal Coated Open Frame	CE cURus TUV	3000 V	75 W	Chassis Mount	1	3.2 A
Cosel USA, Inc. LEA75F-24-SN	24 V	PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	84 %	Enclosed	CE cURus TUV	3000 V	75 W	Chassis Mount	1	3.2 A
Cosel USA, Inc. LEA75F-24-GHR	24 V	PFC Remote On/Off Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	84 %	Open Frame	CE cURus TUV	3000 V	75 W	Chassis Mount	1	3.2 A
Cosel USA, Inc. LEA75F-12-G	12 V	PFC Universal Input	-20 °C	70 °C	2.17 in	8.74 "	1.14 "	55 mm	29 mm	222 mm	ITE (Commercial)	80 %	Open Frame	CE cURus TUV	3000 V	75 W	Chassis Mount	1	6.3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 101.62

Description

General part information

LEA75F Series

Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
