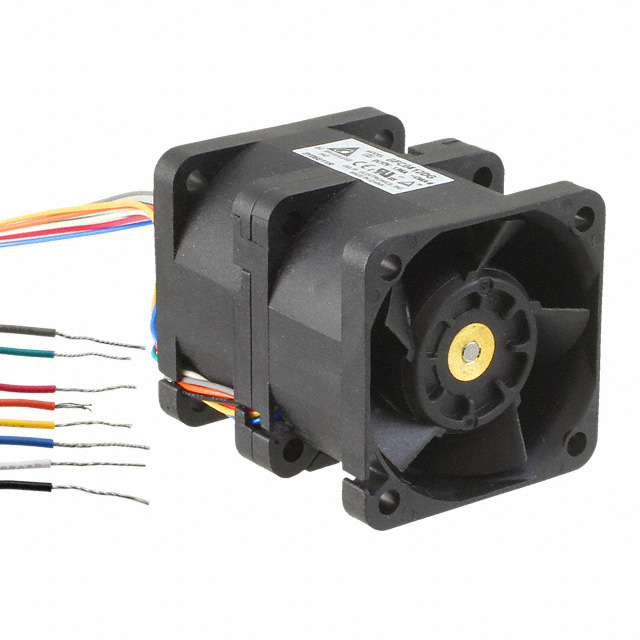

GFC0412DG-CMA4

Obsolete

Delta Electronics

FAN AXIAL DUAL 40X48MM 12VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Blowers CSA Cert Fans VDE Cert +2

GFC0412DG-CMA4

Obsolete

Delta Electronics

FAN AXIAL DUAL 40X48MM 12VDC

Deep-Dive with AI

DocumentsFans, Blowers CSA Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GFC0412DG-CMA4

Air Flow	0.907 mł/min
Air Flow	32.4 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	1.4 A
Fan Type	Tubeaxial (Dual)
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64.4 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	16.8 W
RPM [custom]	15150 RPM
RPM [custom]	14300 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	593.3 Pa
Static Pressure	2.382 in H2O
Termination	4 Wire Leads per Fan
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.167 lb
Weight	75.75 g
Width [x]	48 mm

GFC0412 Series

Part	Approval Agency	Material - Blade	Voltage - Rated	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Termination	Features	RPM [custom]	RPM [custom]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Static Pressure	Static Pressure	Material - Frame	Fan Type	Lifetime @ Temp.	Current Rating (Amps)	Noise	Power (Watts)	Weight	Weight	Width [x]	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	RPM
Delta Electronics GFC0412DG-CMA4	CE cURus TUV	Plastic	12 VDC	40 mm	Square	40 mm	4 Wire Leads per Fan	Locked Rotor Protection PWM Control Speed Sensor (Tach)	15150 RPM	14300 RPM	70 °C	70 °C	-10 °C	-10 °C	0.907 mł/min	32.4 CFM	593.3 Pa	2.382 in H2O	Plastic	Tubeaxial (Dual)	70000 Hrs	1.4 A	64.4 dB(A)	16.8 W	0.167 lb	75.75 g	48 mm	Ball	10.8 VDC	12.6 VDC
Delta Electronics GFC0412DS-SM06B0G	cURus TUV	Plastic	12 VDC	40 mm	Square	40 mm	4 Wire Leads per Fan	Locked Rotor Protection PWM Control Speed Sensor (Tach)	23000 RPM	20500 RPM	60 °C	60 °C	-10 °C	-10 °C	1.05 m³/min	37.6 CFM	1023.8 Pa	4.11 in H2O	Plastic	Tubeaxial (Dual)	70000 Hrs	2.27 A		27.24 W	0.183 lb	83.01 g	56 mm	Ball	10.8 VDC	12.6 VDC
Delta Electronics GFC0412DS-DF00	CE cURus TUV	Plastic	12 VDC	40 mm	Square	40 mm	4 Wire Leads per Fan	Locked Rotor Protection PWM Control Speed Sensor (Tach)	16000 RPM	15400 RPM	60 °C	60 °C	-10 °C	-10 °C			655.4 Pa	2.631 in H2O	Plastic	Tubeaxial (Dual)	70000 Hrs	1.3 A	64.5 dB(A)	15.6 W	0.183 lb	83.01 g	56 mm	Ball	10.8 VDC	12.6 VDC
Delta Electronics GFC0412DS-DU49	CE cURus TUV	Plastic	12 VDC	40 mm	Square	40 mm	4 Wire Leads per Fan	Locked Rotor Protection PWM Control Speed Sensor (Tach)	23000 RPM	17400 RPM	60 °C	60 °C	-10 °C	-10 °C	1.01 m³/min	35.9 CFM	992.6 Pa	3.985 in H2O	Plastic	Tubeaxial (Dual)	70000 Hrs	1.85 A	68.5 dB(A)	22.2 W	0.183 lb	83.01 g	56 mm	Ball	10.8 VDC	12.6 VDC
Delta Electronics GFC0412DS-CMA5	CE cURus TUV	Plastic	12 VDC	40 mm	Square	40 mm	4 Wire Leads per Fan	Locked Rotor Protection PWM Control Speed Sensor (Tach)			70 °C	70 °C	-10 °C	-10 °C	0.708 m³/min	25.3 CFM	673.3 Pa	2.703 in H2O	Plastic	Tubeaxial (Dual)	30000 Hrs	0.85 A	64 dB(A)	10.2 W	0.176 lb	80 g	56 mm	Ball	10.8 VDC	12.6 VDC	15700 RPM 17200 RPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

GFC0412 Series

Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 32.4 CFM (0.907m³/min) 4 Wire Leads per Fan
