22DGHC0CC

Active

Essentra Access Solutions

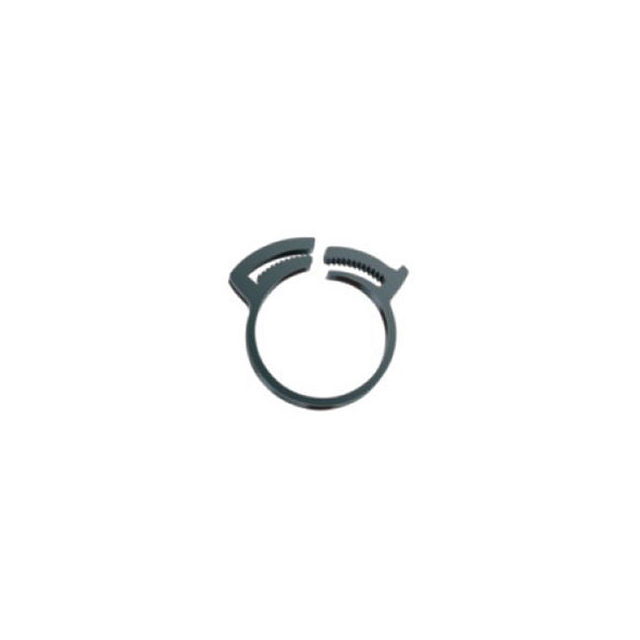

CBL CLAMP HOSE BLACK DBL GRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

22DGHC0CC

Active

Essentra Access Solutions

CBL CLAMP HOSE BLACK DBL GRIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22DGHC0CC

Color	Black
Material	Polyamide (PA66), Nylon 6/6
Opening Size [Max]	12.9 mm
Opening Size [Max]	0.508 in
Opening Size [Min]	0.437 in
Opening Size [Min]	11.1 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	0.437 in
Width	11.1 mm

22DGHC Series

Part	Width [x]	Width [x]	Type	Opening Size [Min] [z]	Opening Size [Min]	Opening Size [Max] [z]	Opening Size [Max]	Color	Material	Type Attributes	Opening Size [Min]	Opening Size [Max]	Features	Material Thickness	Material Thickness	Opening Size [Min] [z]	Opening Size [Max] [z]	Width	Width	Width [y]	Width [y]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Width [x]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]
Essentra Access Solutions 22DGHC00A	4.34 mm	0.171 in	Clamp Hose	0.22 in	5.59 mm	0.256 in	6.5 mm	Black	Polyamide (PA66) Nylon 6/6	Push-Fit
Essentra Access Solutions 22DGHC075	9.37 mm	0.369 in	Clamp Hose		74.7 mm		80.49 mm	Black	Polyamide (PA66) Nylon 6/6		2.941 in	3.169 in	Chemical Resistant Corrosion Resistant	0.102 in	2.59 mm
Essentra Access Solutions 22DGHC00N			Clamp Hose	1.134 in		1.268 in		Black	Polyamide (PA66) Nylon 6/6				Chemical Resistant Corrosion Resistant	0.078 in	1.98 mm	28.8 mm	32.21 mm	9 mm	0.354 "
Essentra Access Solutions 22DGHC00M			Clamp Hose	1.043 in		1.161 in		Black	Polyamide (PA66) Nylon 6/6				Chemical Resistant Corrosion Resistant	0.094 in	2.38 mm	26.49 mm	29.49 mm			0.317 in	8.05 mm
Essentra Access Solutions 22DGHC0CC			Clamp Hose		11.1 mm		12.9 mm	Black	Polyamide (PA66) Nylon 6/6	Push-Fit								11.1 mm	0.437 in			0.437 in	0.508 in
Essentra Access Solutions 22DGHC00B	4.76 mm	0.188 in	Clamp Hose					Black	Polyamide (PA66) Nylon 6/6				Chemical Resistant Corrosion Resistant	0.063 in	1.6 mm
Essentra Access Solutions 22DGHC065	9.5 mm	0.374 "	Clamp Hose		65 mm		69.01 mm	Black	Polyamide (PA66) Nylon 6/6	Push-Fit	2.559 in	2.717 in
Essentra Access Solutions 22DGHC00J			Clamp Hose	0.799 in		0.906 in		Black	Polyamide (PA66) Nylon 6/6				Chemical Resistant Corrosion Resistant	0.078 in	1.98 mm	20.3 mm	23.01 mm
Essentra Access Solutions 22DGHC00K	7.01 mm		Clamp Hose					Black	Polyamide (PA66) Nylon 6/6				Chemical Resistant Corrosion Resistant	0.078 in	1.98 mm									22.2 mm	0.98 in	0.874 in	24.89 mm	0.276 in
Essentra Access Solutions 22DGHC00D			Clamp Hose					Black	Polyamide (PA66) Nylon 6/6	Push-Fit										0.24 in	6.1 mm								0.543 in	0.472 in	11.99 mm	13.79 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.36
		10	$ 0.31
		25	$ 0.29
		50	$ 0.27
		100	$ 0.26
		250	$ 0.24
		500	$ 0.23
		1000	$ 0.20

Description

General part information

22DGHC Series

Cable Clamp, Hose Black 0.437" ~ 0.508" (11.10mm ~ 12.90mm)
